(88.090.AA[05]) - DIA KIT, DYNAMIC FRONT FENDERS (400MM)

Запчасти Case IH FARMALL 105U (88.090.AA[05]) - DIA KIT, DYNAMIC FRONT FENDERS (400MM) (88) - ACCESSORIES

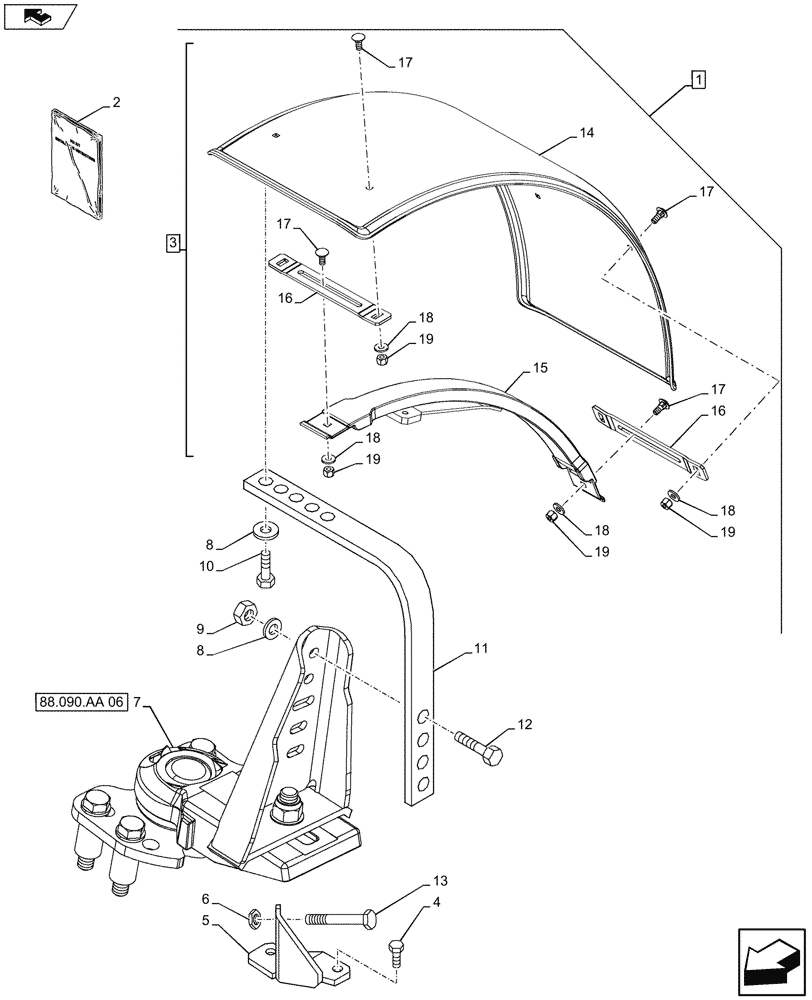

Схема запчастей Case IH FARMALL 105U - (88.090.AA[05]) - DIA KIT, DYNAMIC FRONT FENDERS (400MM) (88) - ACCESSORIES
18
19
18
19
14
8
2
home
88.090.aa 06
13
home
6
18
17
17
5
11
18
16
17
3
8
4
17
19
7
12
1
15
16
19
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718487020

DIA KIT, TRACTOR

Wide Dynamic Front Fenders for Front Axle CL.2 (400mm), Incl 2 - 19, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.090.AA 06

1шт.

2

84560829

INSTRUCTION

1шт.

3

47132589

FRONT FENDER

W=400 mm, ASSY, Incl 14 - 19

2шт.

4

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

5

87609919

BRACKET

LH

1шт.

5

87609920

BRACKET

RH

1шт.

6

16101521

NUT,M12 x 1.25, Cl 10

2шт.

7

87599488

SUPPORT

RH

1шт.

7

87599910

SUPPORT

LH

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

9

16105014

LOCK NUT,M12 x 1.25

4шт.

10

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

11

82027913

SUPPORT

2шт.

12

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

13

15541421

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

14

5122325

FRONT FENDER

2шт.

15

47132609

SUPPORT

2шт.

16

82021040

SUPPORT

4шт.

17

82021059

BOLT,Hex, M10 x 1.25 x 31mm

12шт.

18

12626021

WASHER,10.2mm ID x 22mm OD x 3mm Thk

12шт.

19

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.
