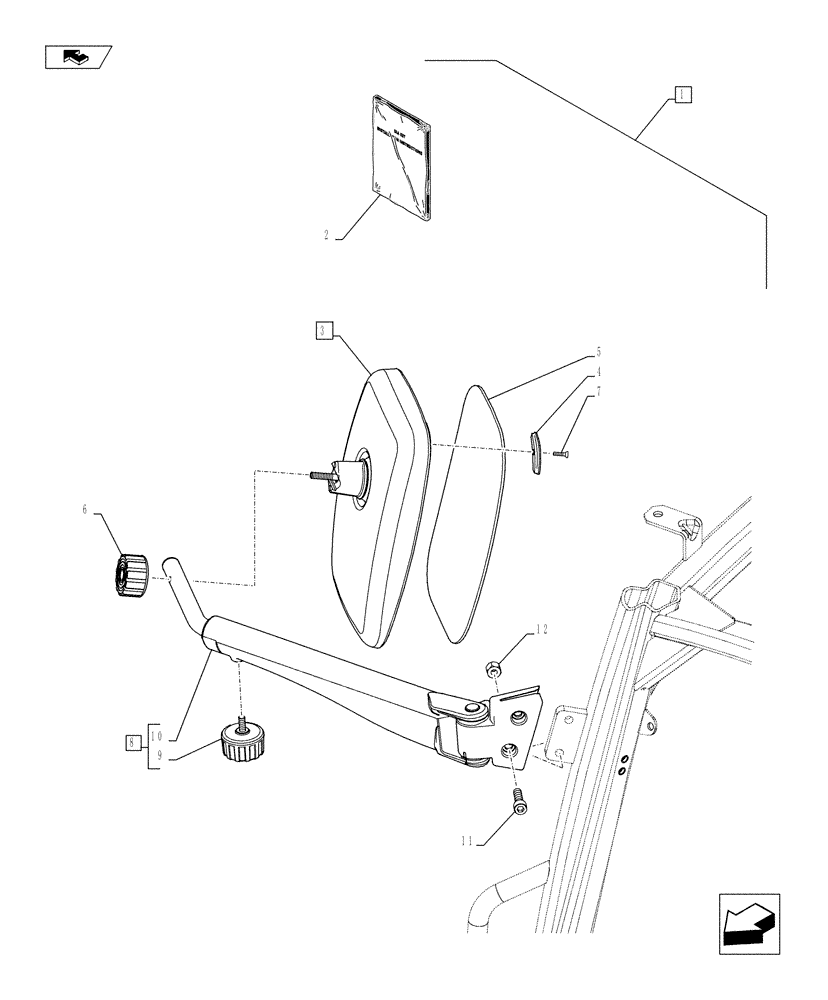

Запчасти Case IH FARMALL 105U (88.090.AA[04]) - DIA KIT, 2 TELESCOPIC REAR VIEW MIRROR (88) - ACCESSORIES

1

718837050

DIA KIT, TRACTOR

2 Telescopic external rear view mirror, Incl 2 - 12, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84555892

INSTRUCTION

1шт.

3

87339177

MIRROR ASSY.

ASSY, Incl 4 - 7

2шт.

4

87531094

BRACKET

4шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

82016257

KNOB

1шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

87314381

MIRROR ARM

ASSY, LH, Incl 9, 10

1шт.

8

84398575

MIRROR ARM

ASSY, RH, Incl 9, 10

1шт.

9

87365131

KNOB

2шт.

10

NSS

NOT SOLD SEPARAT

Telescopic arm, Incl in 8

2шт.

11

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

12

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.
