(88.090.AA[03]) - DIA KIT, INSTRUCTION SEAT WITH BELT

Запчасти Case IH FARMALL 105U (88.090.AA[03]) - DIA KIT, INSTRUCTION SEAT WITH BELT (88) - ACCESSORIES

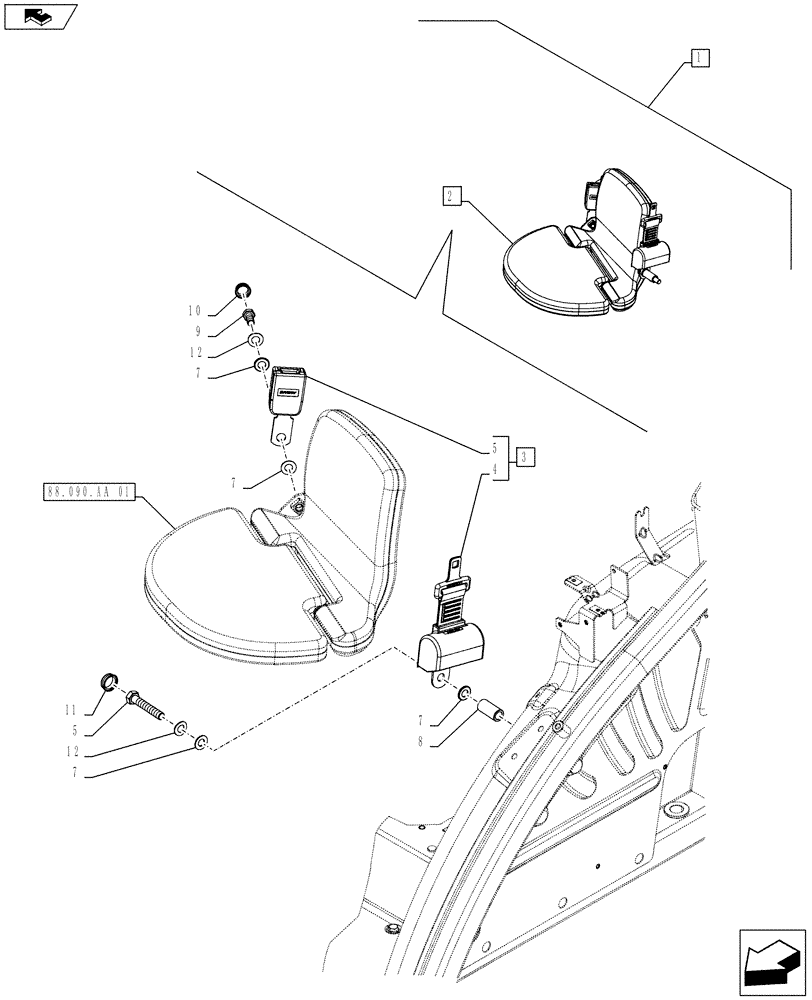

Схема запчастей Case IH FARMALL 105U - (88.090.AA[03]) - DIA KIT, INSTRUCTION SEAT WITH BELT (88) - ACCESSORIES
home
2
3
8
10
7
7
11
5
12
9
7
7
12
1
4
5
88.090.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718829051

DIA KIT, TRACTOR

Instruction seat with belt, Incl 2, Serial Range: -`0

1шт.

See also fig. 88.090.AA 01, 88.090.AA 02

1шт.

2

84281902

INSTRUCTIONAL SEAT

ASSY, Incl 3 - 12, Serial Range: -`0

1шт.

See also breakdown in figure 88.090.AA 01

1шт.

3

84398541

SEAT BELT,49mm W x 1250mm L

Incl in 1, ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Belt, Incl in 3

1шт.

5

NSS

NOT SOLD SEPARAT

Belt, Incl in 3

1шт.

6

84467678

WASHER,13mm ID x 24mm OD x 1.2mm Thk

2шт.

7

84358390

WASHER,12.5mm ID x 25mm OD x 2mm Thk

4шт.

8

84413190

SPACER,20mm ID x 42mm OD x 13mm L

1шт.

9

5080270

SCREW,7/16 UNF x 25mm

1шт.

10

5080271

COVER,17.5mm ID

1шт.

11

84409814

PLUG,M12 x 1.25

1шт.

12

84467683

BOLT,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.
