(88.090.AA[02]) - DIA KIT, INSTRUCTION SEAT WITH BELT

Запчасти Case IH FARMALL 105U (88.090.AA[02]) - DIA KIT, INSTRUCTION SEAT WITH BELT (88) - ACCESSORIES

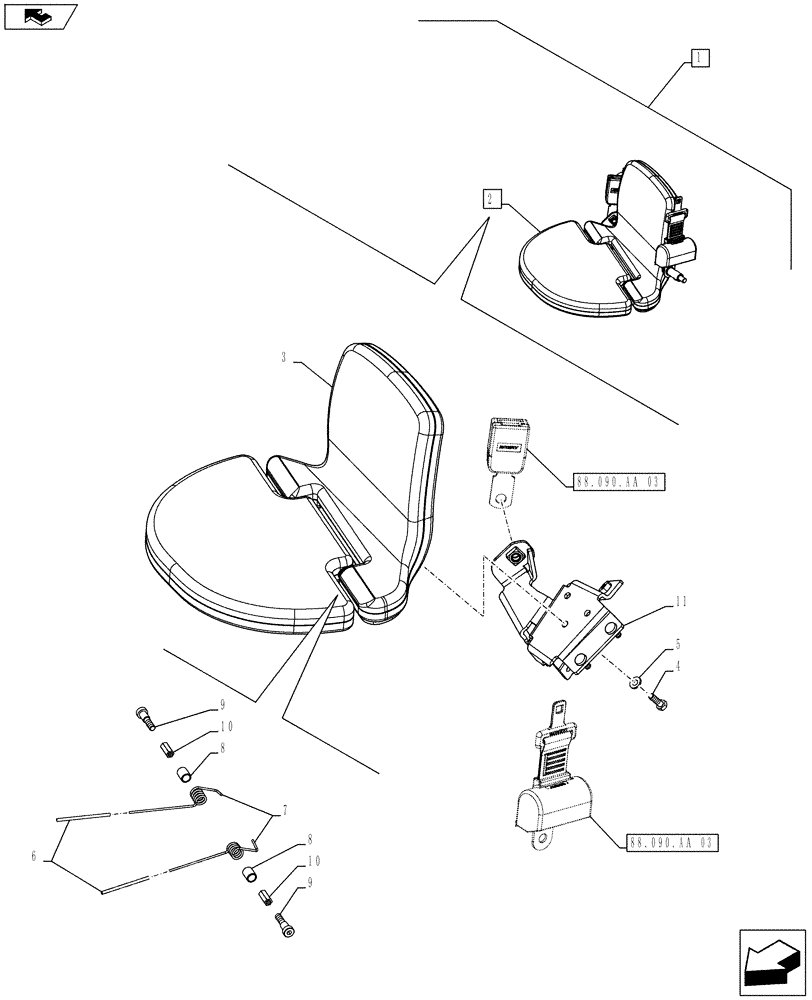

Схема запчастей Case IH FARMALL 105U - (88.090.AA[02]) - DIA KIT, INSTRUCTION SEAT WITH BELT (88) - ACCESSORIES
88.090.aa (03)
11
10
7
3
2
4
9
10
8
1
9
6
8
5
home
88.090.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718829051

DIA KIT, TRACTOR

Instruction seat with belt, Incl 2 - 11, Serial Range: -`0

1шт.

See also fig. 88.090.AA 01, 88.090.AA 03

1шт.

2

84281902

INSTRUCTIONAL SEAT

ASSY, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Instructional seat, Incl in 2

1шт.

4

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

3шт.

5

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

84412870

SLEEVE

2шт.

7

84412864

SPRING

2шт.

8

84412873

BUSHING

2шт.

9

84412875

SUPPORT

2шт.

10

84412869

PROFILE,M8 x 1.25

2шт.

11

84295299

BRACKET

1шт.
