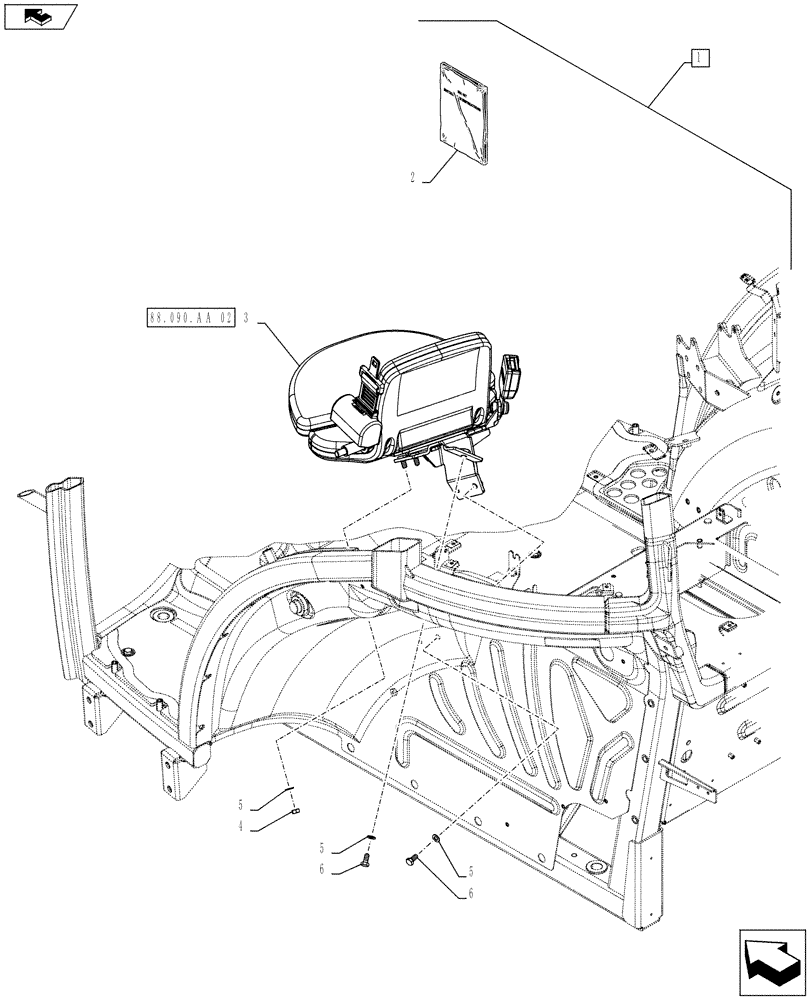

Запчасти Case IH FARMALL 105U (88.090.AA[01]) - DIA KIT, INSTRUCTION SEAT WITH BELT (88) - ACCESSORIES

1

718829051

DIA KIT, TRACTOR

Instruction seat with belt, Incl 2 - 6, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.090.AA 02, 88.090.AA 03

1шт.

2

84555885

INSTRUCTION

1шт.

3

84281902

INSTRUCTIONAL SEAT

ASSY

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.
