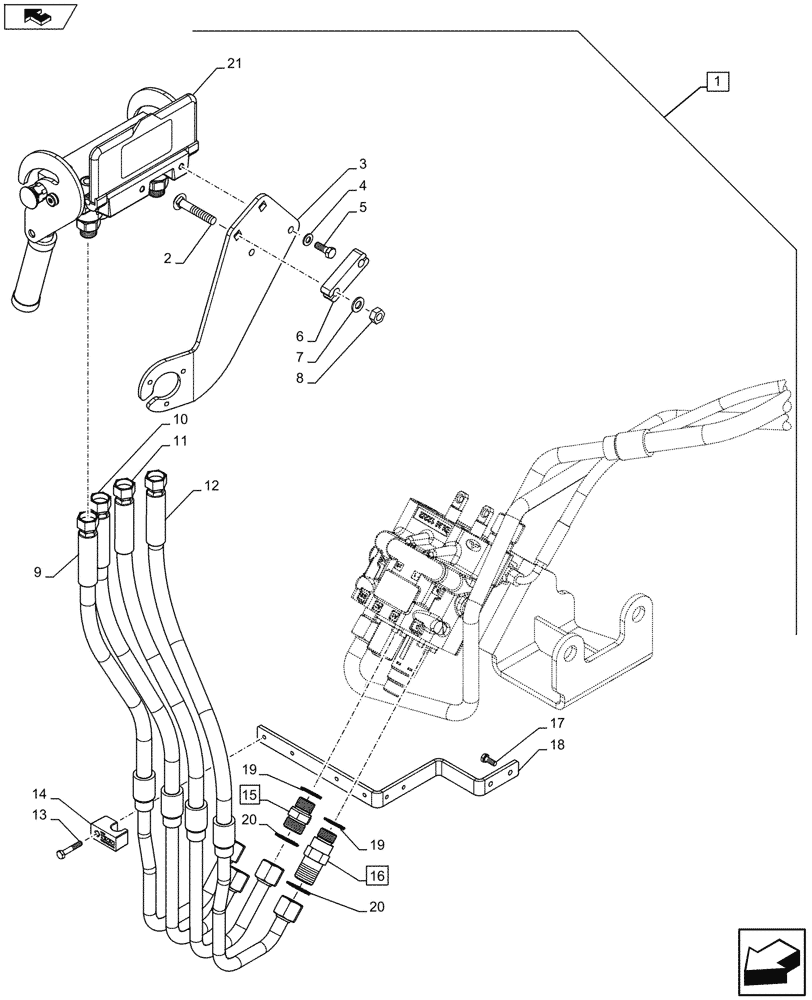

Запчасти Case IH FARMALL 105U (88.082.AA[02]) - DIA KIT, FRONT LOADER, BUCKET, ISO (88) - ACCESSORIES

1

718195050

DIA KIT, TRACTOR

Dia Kit, Front Loader Bucket Europe, Incl 2 - 21

1шт.

Refer to Installation Instructions for Correct Assembly Procedure, See also fig. 88.082.AA 01, 88.082.AA 03, 88.082.AA 04

1шт.

2

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

3

84529495

BRACKET, SUPPORTING

1шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

5

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

6

84529497

BRACKET, SUPPORTING

1шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

2шт.

9

84564127

HYD TUBE

From MMV to Front Loader, Bump

1шт.

10

84564129

PIPE

From MMV to Front Loader, Scoop

1шт.

11

84564134

HYDRAULIC HOSE

From MMV to Front Loader, Rise

1шт.

12

84564136

PIPE

From MMV to Front Loader, Lower

1шт.

13

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

4шт.

14

84309587

BRACKET

4шт.

15

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 19, 20

2шт.

16

87480324

HYD CONNECTOR

ASSY, Incl 19, 20

2шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

18

84528805

BRACKET

1шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Incl in 15 or 16

4шт.

20

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Incl in 15 or 16

4шт.

21

87733579

COUPLING

Multifaster Hydraulic Connector

1шт.

Includes Connector Service KIT PN 87616935 (Qty. 4)

1шт.
