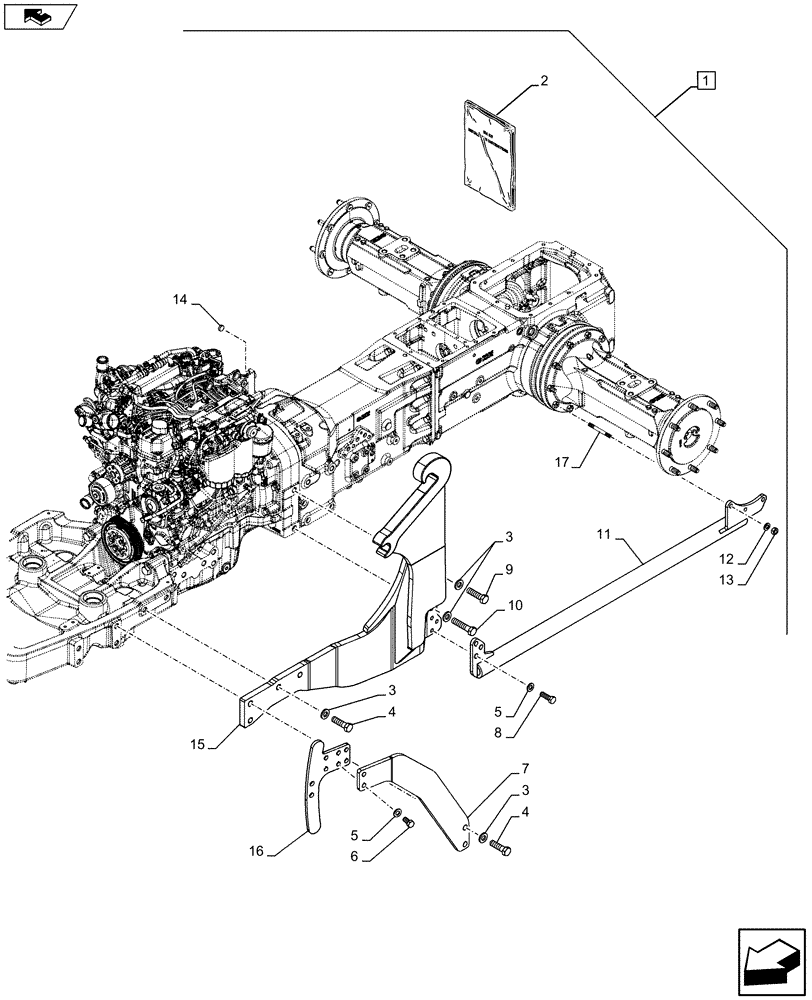

Запчасти Case IH FARMALL 105U (88.082.AA[01]) - DIA KIT, FRONT LOADER, BUCKET, ISO (88) - ACCESSORIES

1

718195050

DIA KIT, TRACTOR

Dia Kit, Front Loader Bracket Europe, Incl 2 - 17

1шт.

Refer to Installation Instructions for Correct Assembly Procedure, See also fig. 88.082.AA 02, 88.082.AA 03, 88.082.AA 04

1шт.

2

84560592

INSTRUCTION

Instruction

1шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

12шт.

4

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

8шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

10шт.

6

11127521

BOLT,Hex, M16 x 35, 8.8

4шт.

7

47413447

BRACKET

LH

1шт.

7

47413439

BRACKET

RH

1шт.

8

11118934

6шт.

9

11125334

BOLT,Hex, M20 x 80, 10.9

6шт.

10

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

11

84494848

REINFORCEMENT

LH

1шт.

11

84494800

REINFORCEMENT

RH

1шт.

12

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

6шт.

13

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

6шт.

14

14328801

PLUG,M22, Tapered

1шт.

15

84494847

BRACKET

LH

1шт.

15

84494793

BRACKET

RH

1шт.

16

47419120

PROTECTION PLATE

2шт.

17

84498414

STUD

M14=1,5x182

6шт.
