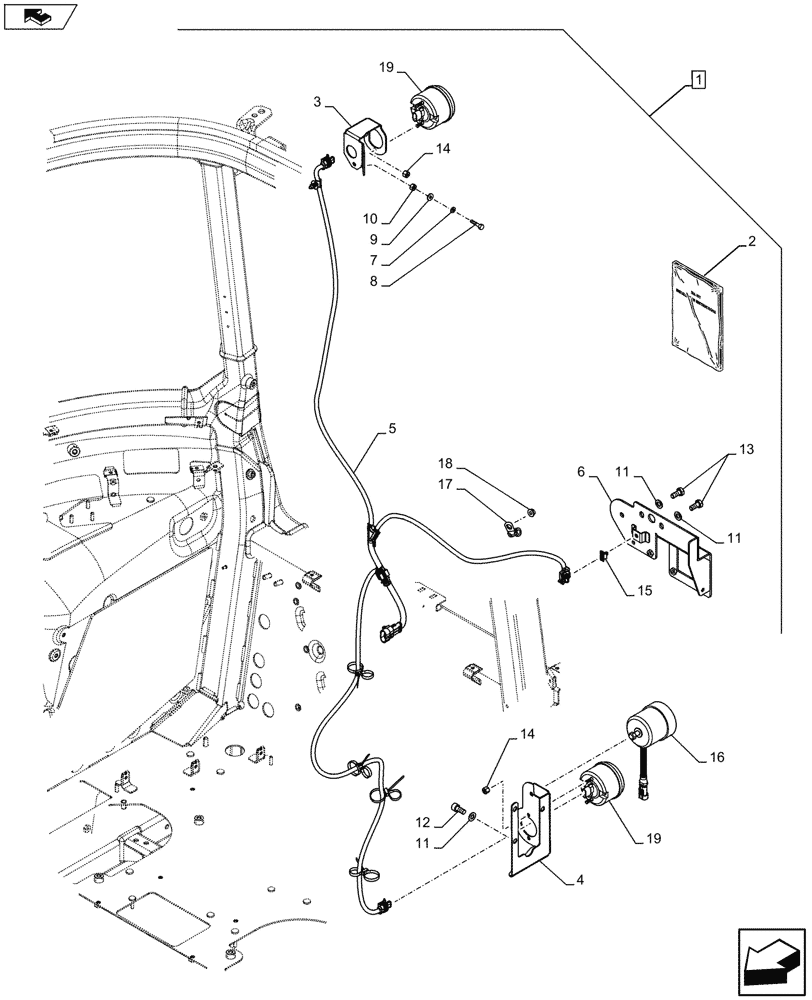

Запчасти Case IH FARMALL 105U (88.055.AA[06]) - DIA KIT, REVERSE ALARM (88) - ACCESSORIES

1

718825050

DIA KIT, TRACTOR

Reversing Alarm, Incl 2 - 19

1шт.

Refer to Installation Instructions for Correct Assembly Procedure, See also fig. 88.055.AA 07

1шт.

2

47425140

INSTRUCTION

1шт.

3

47426661

BRACKET

1шт.

4

47426662

BRACKET

1шт.

5

84478505

WIRE HARNESS

1шт.

6

47457848

BRACKET

1шт.

7

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

8

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

15896224

NUT,Hex, M6

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

12

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

13

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

14

12574215

NUT,M6 x 1, Cl 8

4шт.

15

84161552

CLIP,6.5mm OD, Black

1шт.

16

84470196

BACKUP ALARM

Audible Reversing

1шт.

17

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

3шт.

18

14059221

FLANGE NUT,M6 x 1, Flg, Cl10

3шт.

19

84185527

LIGHT,12V, 21W, Clear

Reverse Alarm

2шт.
