(88.055.AA[03]) - DIA KIT - ENGINE BLOCK HEATER - ISO

Запчасти Case IH FARMALL 105U (88.055.AA[03]) - DIA KIT - ENGINE BLOCK HEATER - ISO (88) - ACCESSORIES

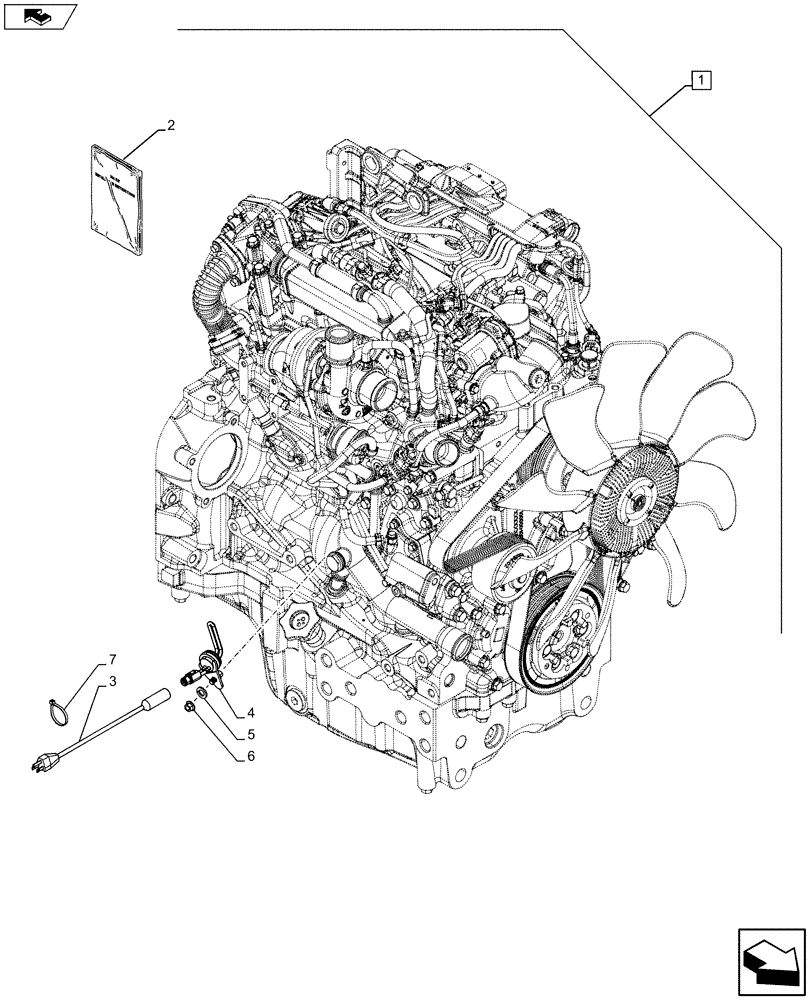

Схема запчастей Case IH FARMALL 105U - (88.055.AA[03]) - DIA KIT - ENGINE BLOCK HEATER - ISO (88) - ACCESSORIES
home
5
3
4
6
7
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719106050

DIA KIT, TRACTOR

Engine Block Heater, Incl 2 - 7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47425139

INSTRUCTION

1шт.

3

87693858

CABLE,Heater, 820W - 120V

1шт.

4

87719400

HEATER,820W - 230V

230V, 820W

1шт.

5

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

7

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

1шт.
