(88.055.AA[01A]) - DIA KIT, ROTARY BEACON, LEFT SIDE

Запчасти Case IH FARMALL 105U (88.055.AA[01A]) - DIA KIT, ROTARY BEACON, LEFT SIDE (88) - ACCESSORIES

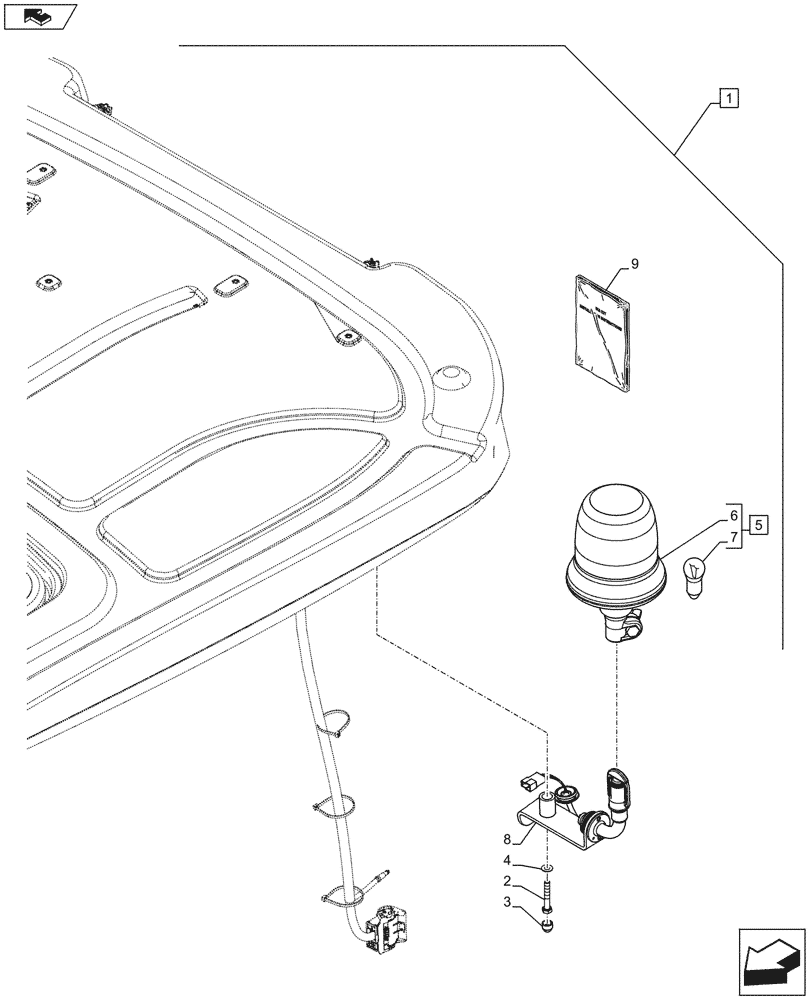

Схема запчастей Case IH FARMALL 105U - (88.055.AA[01A]) - DIA KIT, ROTARY BEACON, LEFT SIDE (88) - ACCESSORIES
9
3
7
2
1
5
home
6
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710762050

DIA KIT, TRACTOR

Rotary Beacon, Incl 2 - 9

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

16606124

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87516431

CUP,for M8 Nut

1шт.

4

12602474

WAVE WASHER,Wave, M8.3

1шт.

5

87723255

BEACON,12V, 55W, Amber

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Body Lamp, Incl in 5

1шт.

7

86616243

1шт.

8

47788366

SUPPORT

1шт.

9

47961733

1шт.
