(88.039.AA[05]) - DIA KIT - FRONT WEIGHT ASSY, W/6 PLTS

Запчасти Case IH FARMALL 105U (88.039.AA[05]) - DIA KIT - FRONT WEIGHT ASSY, W/6 PLTS (88) - ACCESSORIES

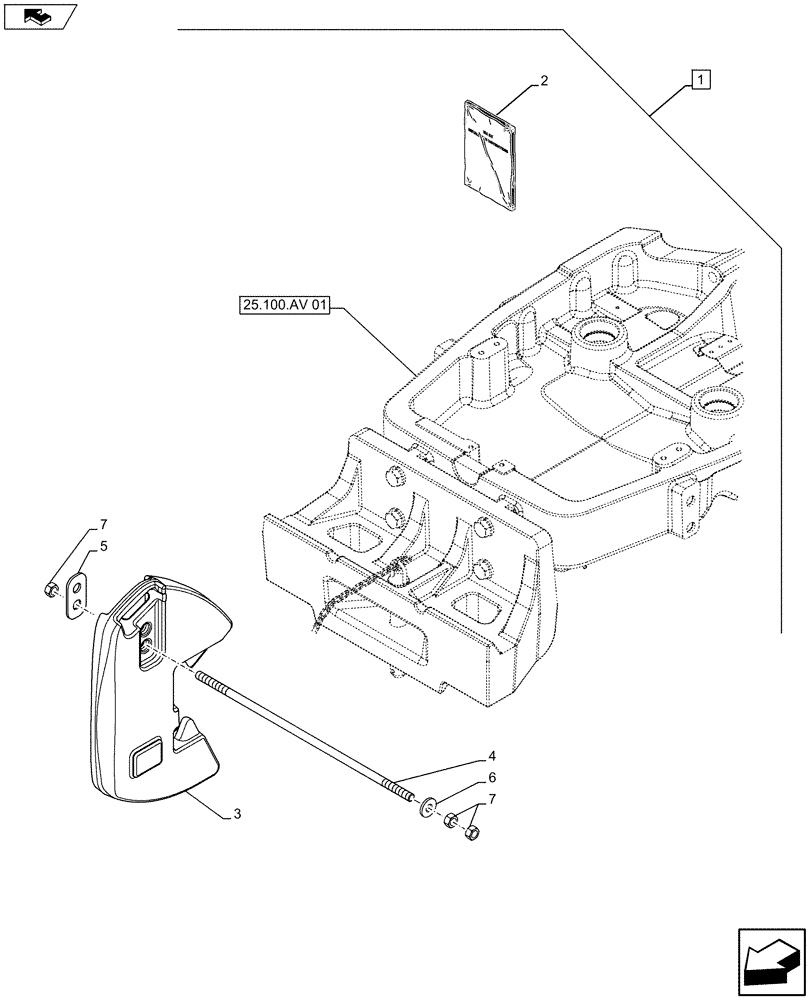

Схема запчастей Case IH FARMALL 105U - (88.039.AA[05]) - DIA KIT - FRONT WEIGHT ASSY, W/6 PLTS (88) - ACCESSORIES
25.100.av 01
3
4
6
1
5
7
7
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710226410

DIA KIT, TRACTOR

Front Weights W/6 PLTS; Incl 2 - 7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84560848

INSTRUCTION

1шт.

3

86988727

WEIGHT,45Kg

1шт.

4

82028306

THREADED ROD,M16 x 2 x 385mm L

1шт.

5

44995007

CLAMP,Grey

2шт.

6

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

7

12163325

NUT,Hex, M16 x 2, Cl 10, ZND

1шт.
