Запчасти Case IH FARMALL 105U (88.039.AA[04]) - DIA KIT, REAR BALLAST (6 PLTS, 430 MM HOLES DISTANCE) (88) - ACCESSORIES

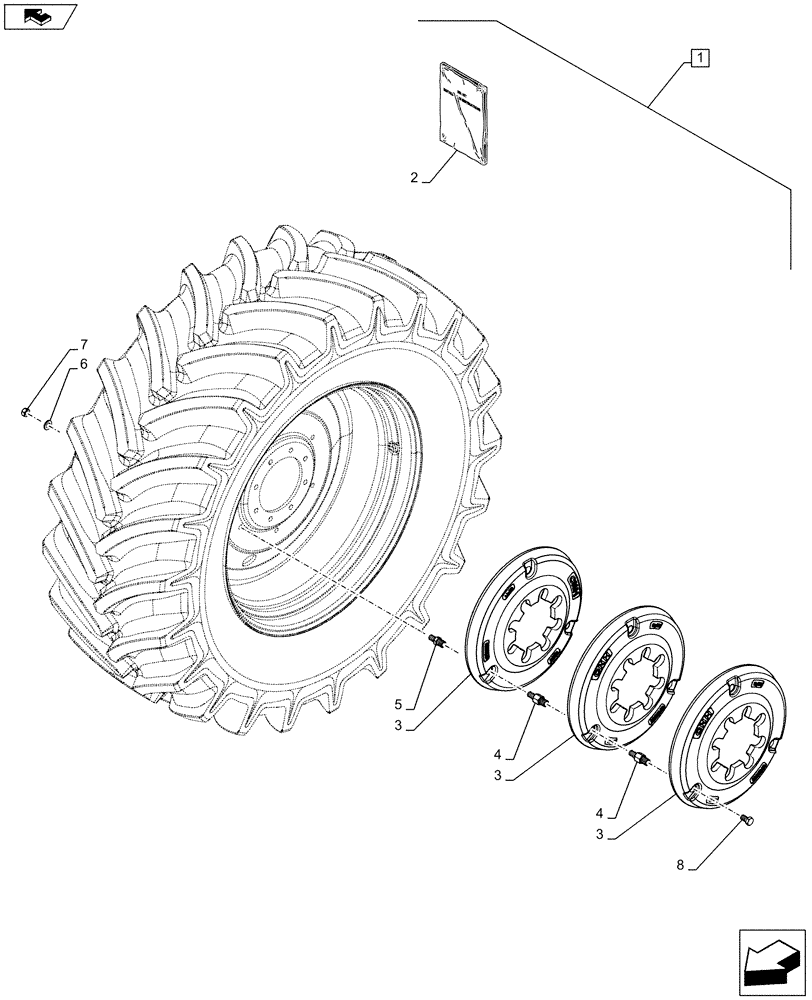

Схема запчастей Case IH FARMALL 105U - (88.039.AA[04]) - DIA KIT, REAR BALLAST (6 PLTS, 430 MM HOLES DISTANCE) (88) - ACCESSORIES
home
5
3
2
3
4
7
1
8
4
6
3

Артикул

Название

Примечание

Количество

1

718471050

DIA KIT, TRACTOR

Rear Ballast (6 PLTS), Incl 2 - 8

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47509186

INSTRUCTION

1шт.

3

47373519

WHEEL WEIGHT,50kg

6шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

12шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

6

12164124

NUT,M16 x 1.5, Cl 8

6шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

8

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 9
