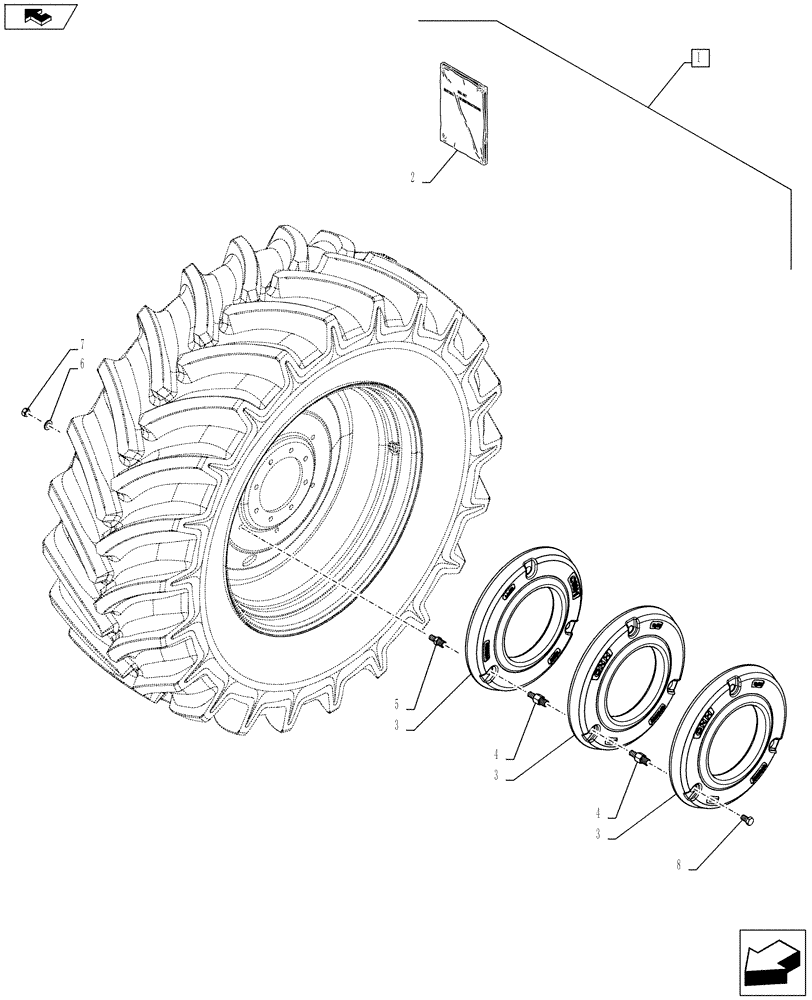

Запчасти Case IH FARMALL 105U (88.039.AA[03]) - DIA KIT, REAR BALLAST (6 PLTS, 410 MM HOLES DISTANCE) (88) - ACCESSORIES

1

718471010

DIA KIT, TRACTOR

Rear ballast (6 Plates), Incl 2 - 8, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84560869

INSTRUCTION

1шт.

3

47131052

WHEEL WEIGHT,50Kg/110Lb

6шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

12шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

6шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

8

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.
