(88.037.AA[14]) - DIA KIT - SWINGING DRAWBAR W/33MM HOLE - ISO

Запчасти Case IH FARMALL 105U (88.037.AA[14]) - DIA KIT - SWINGING DRAWBAR W/33MM HOLE - ISO (88) - ACCESSORIES

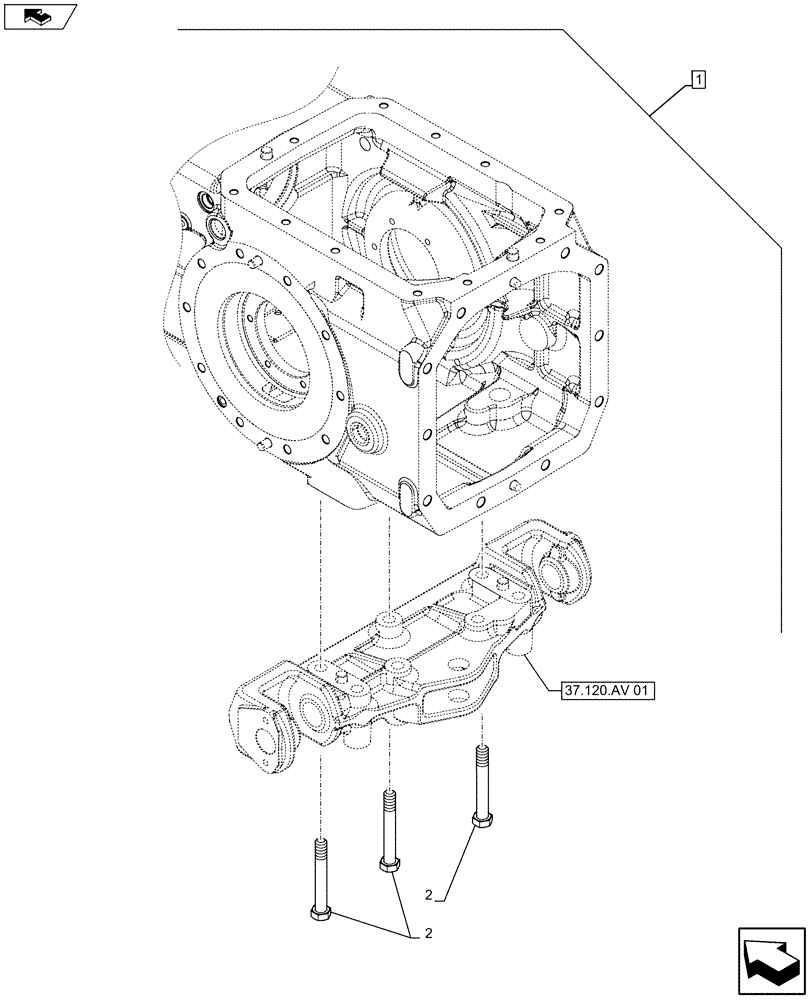

Схема запчастей Case IH FARMALL 105U - (88.037.AA[14]) - DIA KIT - SWINGING DRAWBAR W/33MM HOLE - ISO (88) - ACCESSORIES
37.120.av 01
2
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719912050

DIA KIT, TRACTOR

Swinging Drawbar W/33mm Hole, Incl 2 - 12

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Also Fig. 88.037.AA [12], 88.037.AA [13]

1шт.

2

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

3шт.
