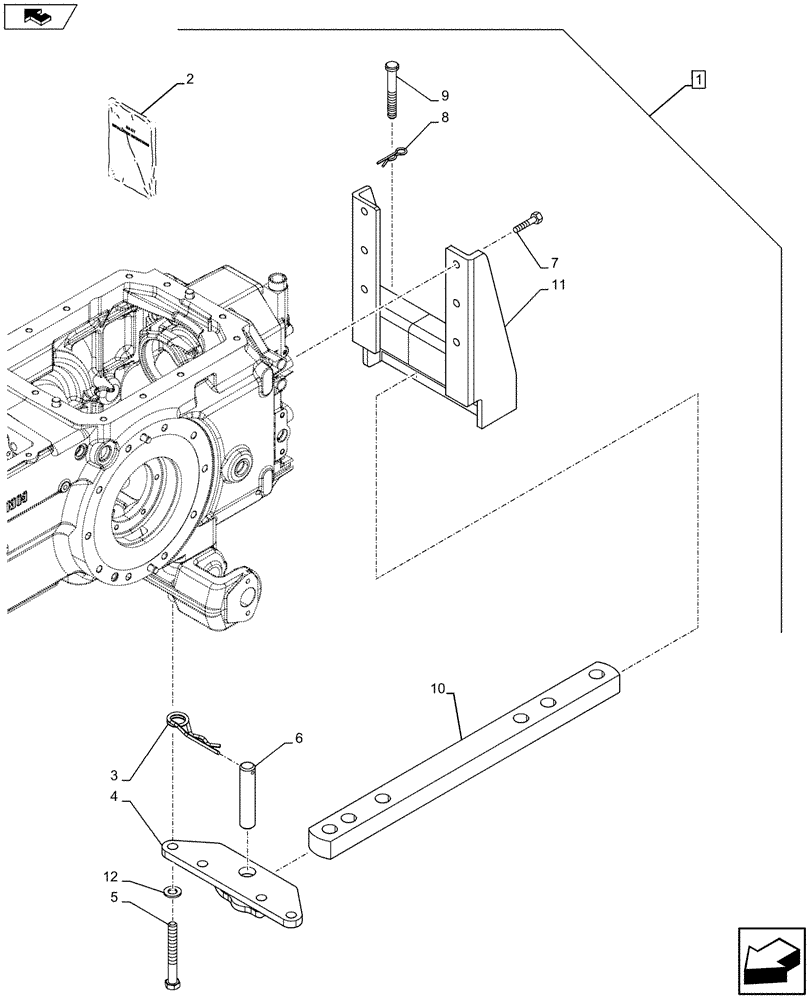

Запчасти Case IH FARMALL 105U (88.037.AA[10]) - DIA KIT - SWINGING DRAWBAR W/33MM HOLE - ISO (88) - ACCESSORIES

1

710907050

DIA KIT, TRACTOR

Swinging Drawbar W/33mm Hole, Incl 2 - 12

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Also Fig. 88.037.AA [11]

1шт.

2

84291621

INSTRUCTION

1шт.

3

82000094

SPRING,40mm OD x 142mm L

1шт.

4

82003409

BRACKET

1шт.

5

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.

6

82006933

PIN,28mm OD x 134mm L

1шт.

7

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

8

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

9

5181758

PIN,16mm OD x 119.5mm L

2шт.

10

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

11

5199428

SUPPORT

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.
