(88.037.AA[08]) - DIA KIT - CAT. C SLIDER TYPE TRAILER HITCH WITH SUPPORT - ISO

Запчасти Case IH FARMALL 105U (88.037.AA[08]) - DIA KIT - CAT. C SLIDER TYPE TRAILER HITCH WITH SUPPORT - ISO (88) - ACCESSORIES

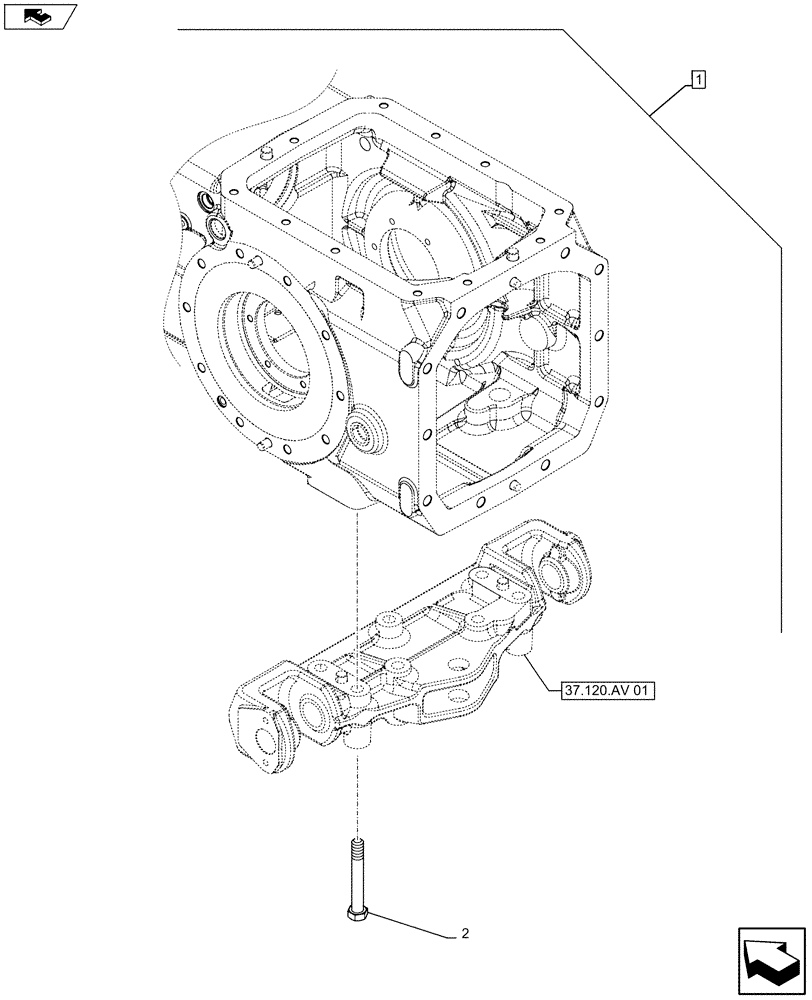

Схема запчастей Case IH FARMALL 105U - (88.037.AA[08]) - DIA KIT - CAT. C SLIDER TYPE TRAILER HITCH WITH SUPPORT - ISO (88) - ACCESSORIES
37.120.av 01
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710928050

DIA KIT, TRACTOR

Cat. C Slider Type Trailer Hitch With Support, Incl 2

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also fig. 88.037.AA 07

1шт.

2

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

1шт.

Выбрано товаров: 4
