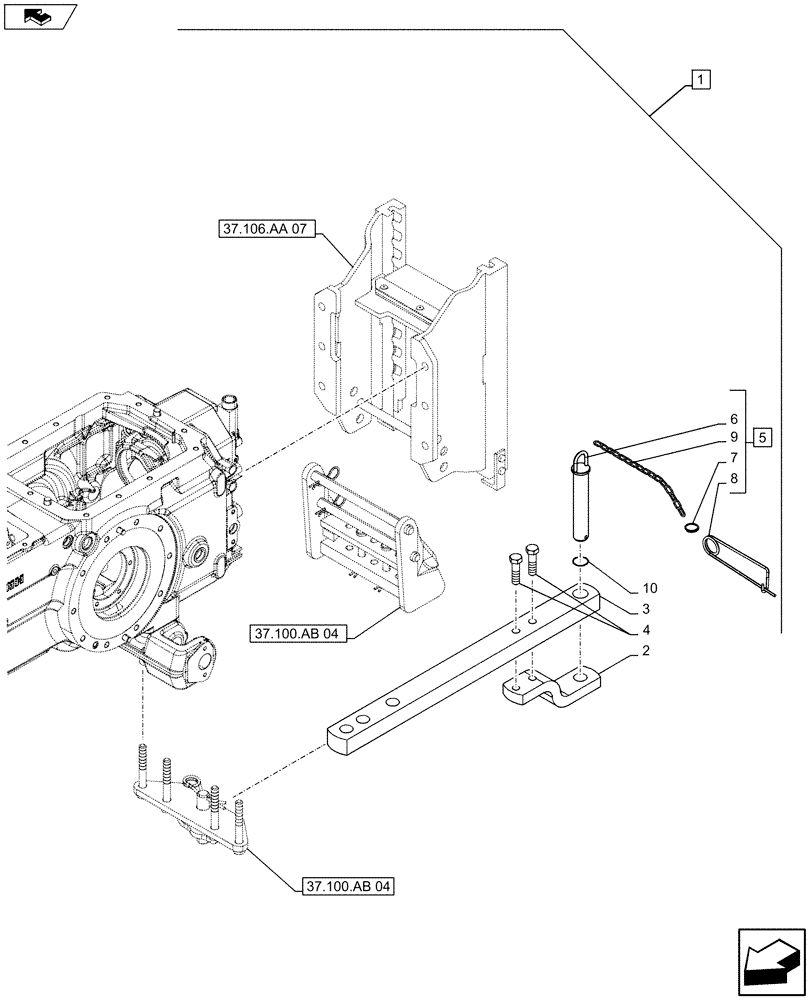

Запчасти Case IH FARMALL 105U (88.037.AA[05]) - DIA KIT - SWINGING DRAWBAR - ISO (88) - ACCESSORIES

1

719912040

DIA KIT, TRACTOR

Swinging Drawbar 33mm, Incl 2 - 10

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also fig. 88.037.AA 04, 88.037.AA 06

1шт.

2

82010166

DRAWBAR CLAMP

1шт.

3

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

4

11119133

BOLT,Hex, M16 x 60, 10.9, Full Thd

2шт.

5

5163732

PIN,32mm OD x 182mm L

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

44901192

SNAP RING,25mm ID

1шт.

8

5152004

HAIR PIN COTTER,195mm L

1шт.

9

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

10

82005365

WASHER

1шт.
