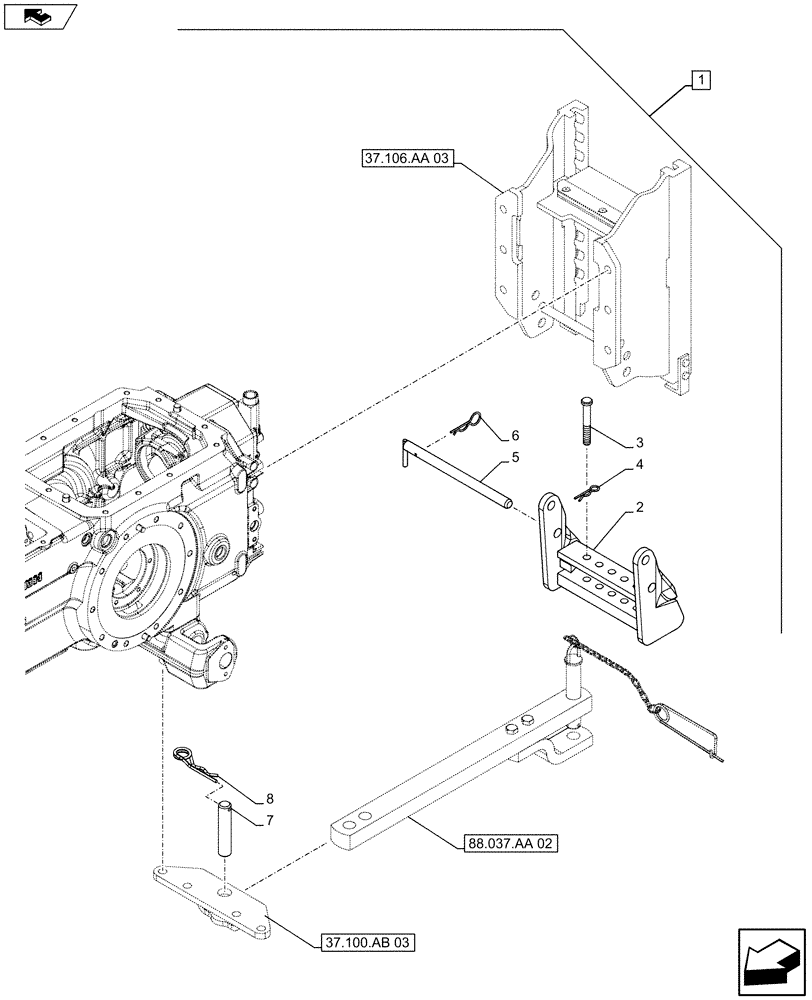

Запчасти Case IH FARMALL 105U (88.037.AA[03]) - DIA KIT - DRAWBAR ANH HITCH - DRAWBAR - SUPPORT - ISO (88) - ACCESSORIES

1

718913050

DIA KIT, TRACTOR

Swinging Drawbar W/29 MM Hole, Incl 2 - 8

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See also 88.035.AA [02]

1шт.

2

5199439

SUPPORT

1шт.

3

5181758

PIN,16mm OD x 119.5mm L

1шт.

4

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

5

5117437

PIN,22mm OD x 325mm L

2шт.

6

44007661

COTTER PIN,33.2mm OD x 78mm L

1шт.

7

82006933

PIN,28mm OD x 134mm L

1шт.

8

82000094

SPRING,40mm OD x 142mm L

1шт.
