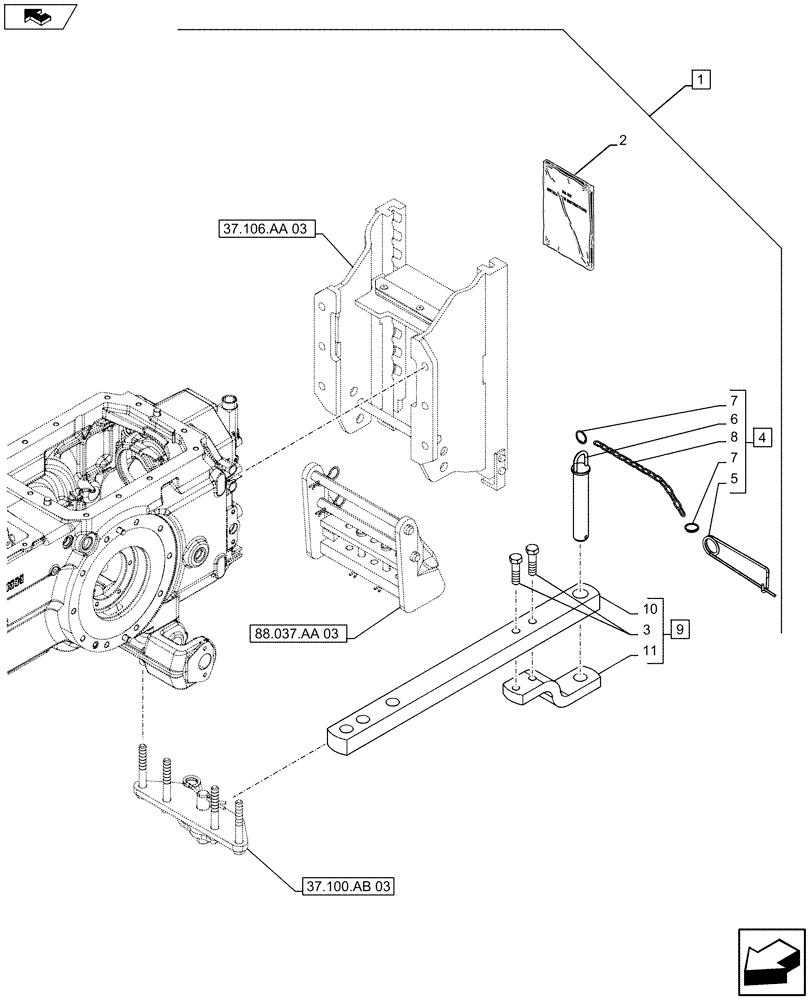

Запчасти Case IH FARMALL 105U (88.037.AA[02]) - DIA KIT - SWINGING DRAWBAR W/29 MM HOLE - ISO (88) - ACCESSORIES

1

718913050

DIA KIT, TRACTOR

Swinging Drawbar W/29 MM Hole, Incl 2 - 11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also fig. 88.037.AA [03]

1шт.

2

47435096

INSTRUCTION

1шт.

3

11119133

BOLT,Hex, M16 x 60, 10.9, Full Thd

1шт.

4

5162713

HITCH PIN,28mm OD x 711.5mm L

1шт.

5

5152004

HAIR PIN COTTER,195mm L

2шт.

6

596060

HITCH PIN,28mm OD x 192mm L

1шт.

7

44901192

SNAP RING,25mm ID

1шт.

8

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

9

87476563

DRAWBAR

1шт.

10

82010172

DRAWBAR

1шт.

11

82010166

DRAWBAR CLAMP

1шт.
