Запчасти Case IH FARMALL 105U (88.035.AA[08]) - DIA KIT - 3RD NOT CONFIGURABLE DETENT - 2 COUPLE DELUXE (88) - ACCESSORIES

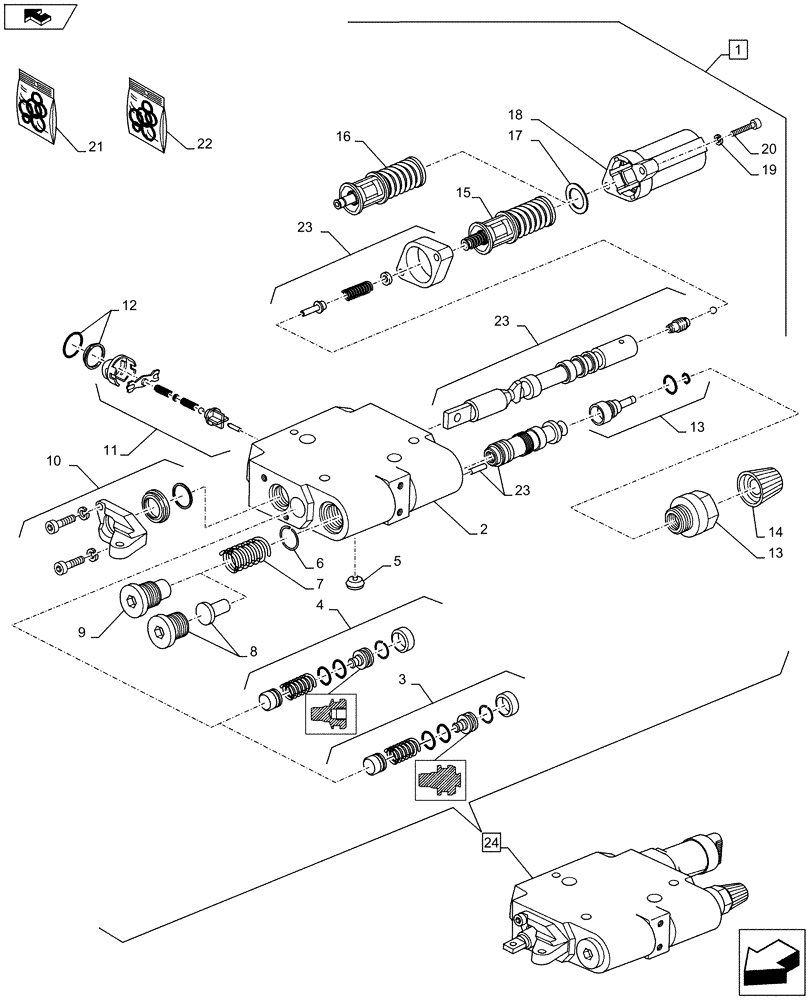

Схема запчастей Case IH FARMALL 105U - (88.035.AA[08]) - DIA KIT - 3RD NOT CONFIGURABLE DETENT - 2 COUPLE DELUXE (88) - ACCESSORIES
23
3
22
16
5
17
20
12
9
4
11
19
23
21
13
24
13
1
8
18
14
10
23
home
15
7
2
6

Артикул

Название

Примечание

Количество

1

718193051

DIA KIT, TRACTOR

3RD Remote Not Configurable Detent - 2 Coupler deluxe, Incl 2 - 24

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also fig. 88.035.AA 05, 88.035.AA 06, 88.035.AA 07

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE HOUSING, Incl in 24

1шт.

3

87376020

SERVICE KIT

1шт.

4

87666211

SERVICE KIT

1шт.

5

47127006

VALVE

1шт.

6

47129463

RETAINER

1шт.

7

84124585

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW PLUG and GUIDE PIN, Incl in 24

1шт.

9

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

10

47615625

SERVICE KIT

1шт.

11

5191720

REPAIR KIT

1шт.

12

84125422

SEAL KIT

1шт.

13

47130767

KIT

1шт.

14

87319988

KNOB

1шт.

15

87384898

SERVICE KIT

STD Equipment, Years: -09-DEC-12

1шт.

15

5190977

KIT

Optional, Years: -09-DEC-12

1шт.

3 Position, W/O Kick-Out

1шт.

15

5190975

KIT

Optional, Years: -09-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent only in Float

1шт.

15

5190976

KIT

Optional, Years: -09-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent in all Positions

1шт.

16

47618828

SERVICE KIT

STD Equipment, Start Year: 10-DEC-12

1шт.

16

47618819

KIT

Optional, Start Year: 10-DEC-12

1шт.

3 Position, W/O Kick-Out

1шт.

16

47618825

KIT

Optional, Start Year: 10-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent only in Float

1шт.

16

47723996

KIT

Optional, Start Year: 10-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent in all Positions

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, Incl in 24

1шт.

18

5191784

CAP

1шт.

19

5191783

SPRING WASHER

2шт.

20

87666210

HEX SOC SCREW,M6 x 30mm

2шт.

21

87661337

KIT

1шт.

22

47127019

SEAL

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE SPOOL COMPONENTS, Incl in 24

1шт.

24

87546169

CONTROL VALVE

ASSY, Incl 2-23

1шт.

24

87546169R

REMAN-HYD VALVE

1шт.

24

87546169C

CORE-VALVE HYD

1шт.

Выбрано товаров: 40
