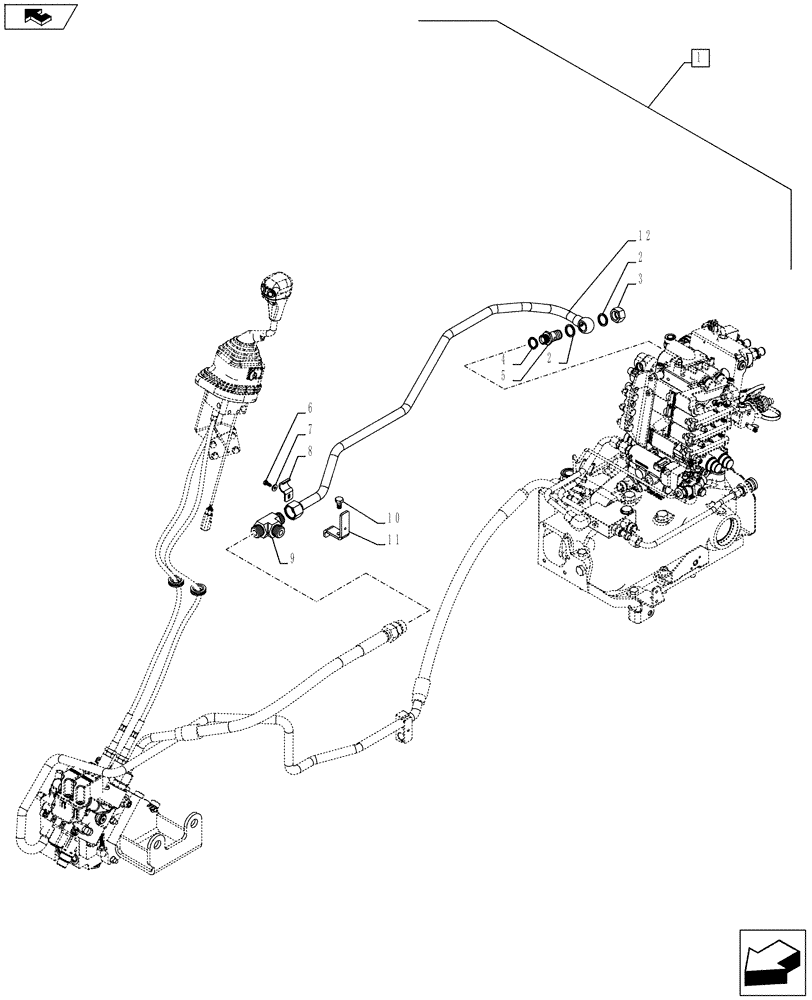

Запчасти Case IH FARMALL 105U (88.035.AA[02]) - DIA KIT, LOAD SENSING MID MOUNT VALVE (88) - ACCESSORIES

1

719302051

DIA KIT, TRACTOR

Load sensing mid mount valve for Close Center Rear Mechanical Control Valves, Incl 2 - 12, Serial Range: -`0

1шт.

See also fig. 88.035.AA 01

1шт.

2

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

3

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

6

10902280

BOLT,Hex, M6 x 16mm

1шт.

7

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

8

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

9

87359490

UNION

1шт.

10

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

84484894

BRACKET

1шт.

12

84487877

TUBE

Delivery MMV

1шт.
