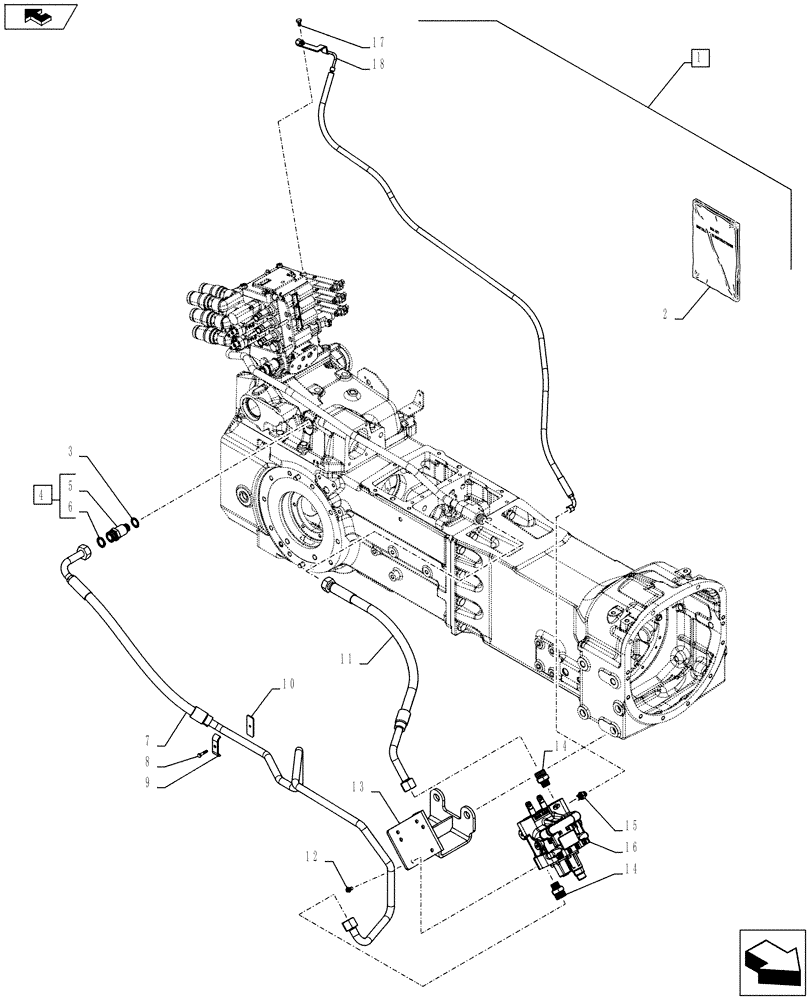

Запчасти Case IH FARMALL 105U (88.035.AA[01]) - DIA KIT, LOAD SENSING MID MOUNT VALVE (88) - ACCESSORIES

1

719302051

DIA KIT, TRACTOR

Load sensing mid mount valve for Close Center Rear Mechanical Control Valves, Incl 2 - 18, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.035.AA 02

1шт.

2

47558642

INSTRUCTION

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

4

84605368

HYD CONNECTOR

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Hydraulic Connector, Incl in 4

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl in 4

1шт.

7

84590495

PIPE

Return Mid Mount Valve

1шт.

8

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

9

84591659

CLAMP

1шт.

10

84554068

BRACKET

1шт.

11

84528725

HYD TUBE

Delivery Mid Mount Valve

1шт.

12

86625006

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

13

84528754

BRACKET

1шт.

14

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

2шт.

15

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

1шт.

16

87696631

INCHING VALVE

1шт.

17

10910321

BOLT,Hex, M8 x 1 x 14mm, Cl 8.8, Full Thd

1шт.

18

84590498

HYD TUBE

LS Mid Mount Valve

1шт.
