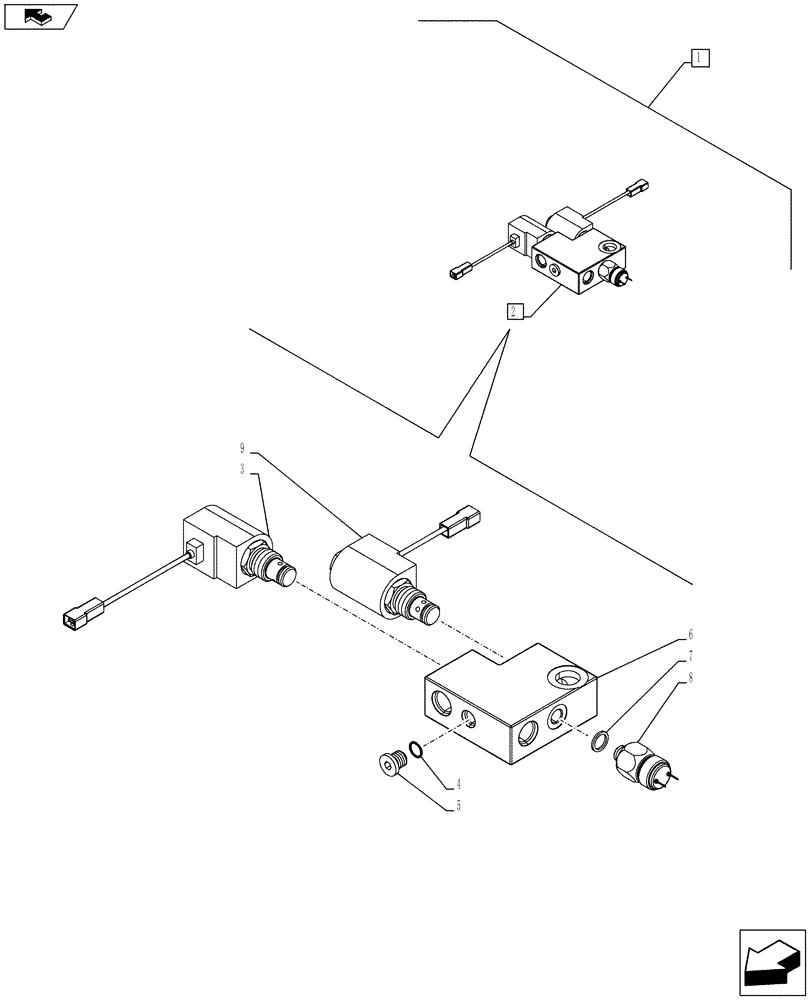

Запчасти Case IH FARMALL 105U (88.033.AA[08]) - DIA KIT, TRAILER BRAKE VALVE (88) - ACCESSORIES

1

710414051

DIA KIT, TRACTOR

Hydraulic trailer brake (Italy) for Close Center Rear Mechanical Control Valves, Incl 2 - 9, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.033.AA 06, 88.033.AA 07

1шт.

2

5196175

BRAKE VALVE

ASSY, Incl 3 - 9

1шт.

3

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

5

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

6

5196170

BLOCK

1шт.

7

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

8

87494633

PRESSURE SWITCH

1шт.

9

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.
