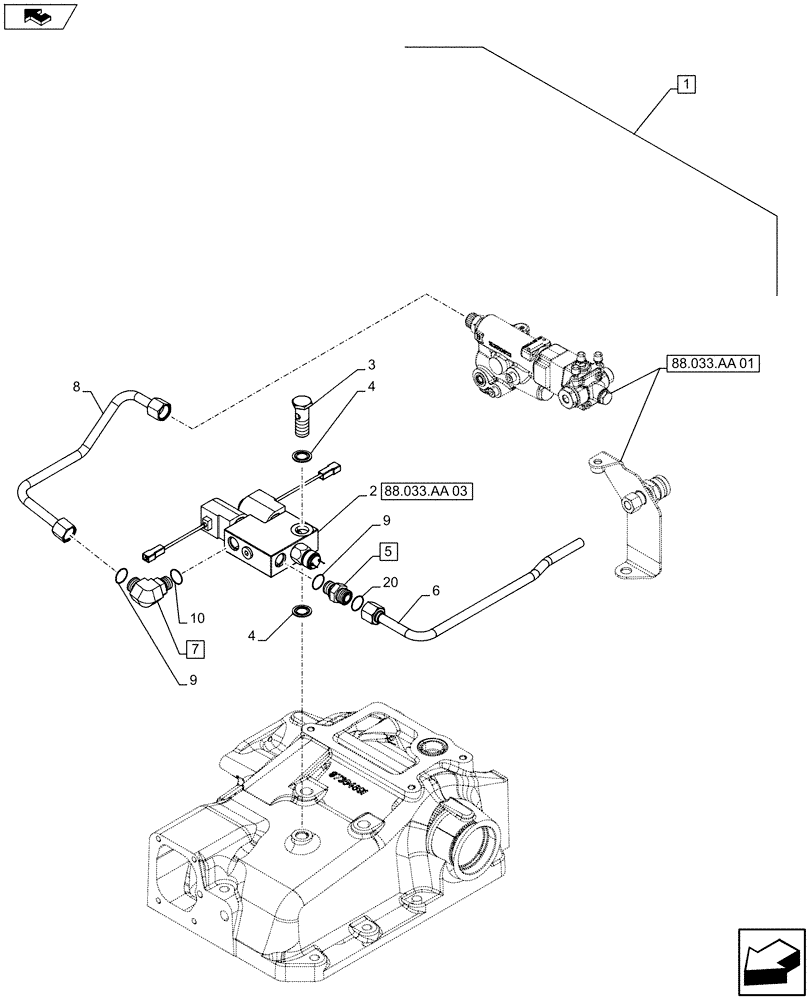

Запчасти Case IH FARMALL 105U (88.033.AA[02]) - DIA KIT, TRAILER BRAKE VALVE - ISO (88) - ACCESSORIES

1

710016050

DIA KIT, TRACTOR

Hydraulic trailer brake (Italy) for Close Center Rear Mechanical Control Valves, Incl 2 - 8, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.033.AA 01, 88.033.AA 03

1шт.

2

5196175

BRAKE VALVE

1шт.

3

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

6

84411948

TUBE

1шт.

7

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

8

84216774

TUBE

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

O-Ring

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-Ring

1шт.
