(88.033.AA[01]) - DIA KIT, TRAILER BRAKE VALVE - ISO

Запчасти Case IH FARMALL 105U (88.033.AA[01]) - DIA KIT, TRAILER BRAKE VALVE - ISO (88) - ACCESSORIES

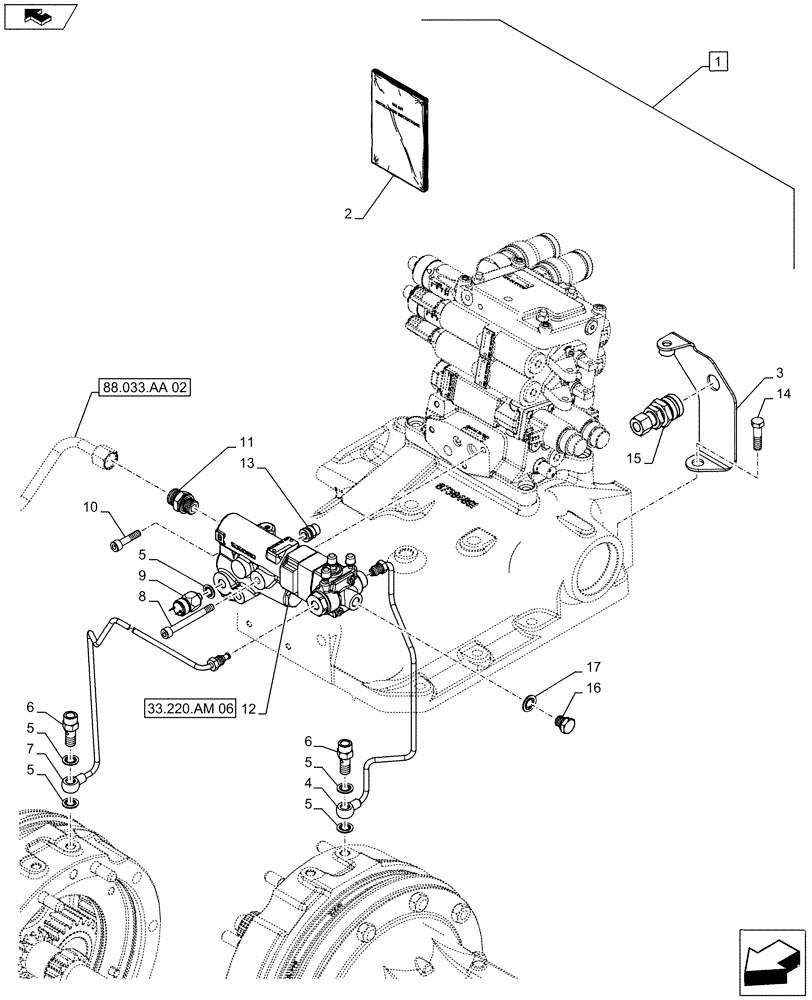

Схема запчастей Case IH FARMALL 105U - (88.033.AA[01]) - DIA KIT, TRAILER BRAKE VALVE - ISO (88) - ACCESSORIES
88.033.aa 02
10
4
1
5
6
5
11
2
15
17
14
3
5
12
7
5
13
5
6
16
9
8
33.220.am 06
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710016050

DIA KIT, TRACTOR

Hydraulic trailer brake (Italy) for Bosch Remotes, Incl 2 - 15, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure,See also fig. 88.033.AA 02, 88.033.AA 05

1шт.

2

84555817

INSTRUCTION

1шт.

3

84405822

BRACKET

1шт.

4

84533386

PIPE

1шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

5шт.

6

5113983

BANJO BOLT

2шт.

7

84533401

PIPE

1шт.

8

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

9

87494632

PRESSURE SWITCH,M12 x 1.5

1шт.

10

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

11

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.

12

5192069

BRAKE VALVE

1шт.

13

47131575

VALVE PRESSURE RELIE

1шт.

14

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

15

5144514

HYDRAULIC VALVE

1шт.

16

47131496

PLUG,Hex, M12 x 1

1шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.
