(55.523.AM[05]) - VAR - 334703 - ELECTRONIC LIFT, REAR, CONTROL PANEL, W/ RADAR, NA

Запчасти Case IH FARMALL 105U (55.523.AM[05]) - VAR - 334703 - ELECTRONIC LIFT, REAR, CONTROL PANEL, W/ RADAR, NA (55) - ELECTRICAL SYSTEMS

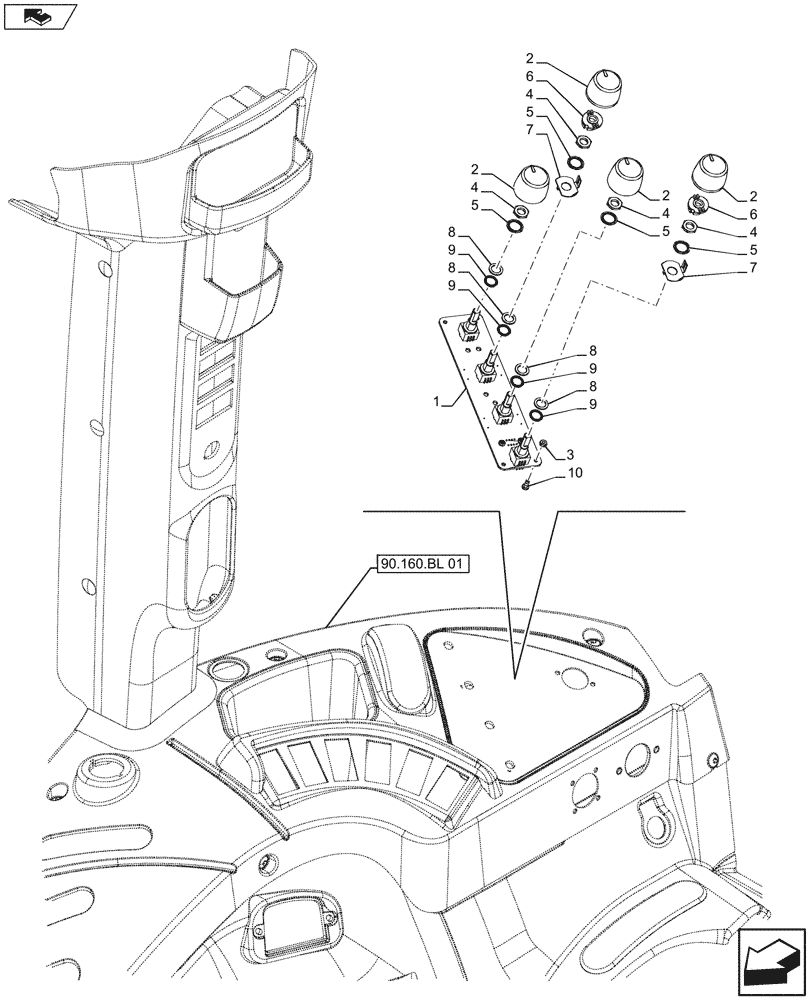

Схема запчастей Case IH FARMALL 105U - (55.523.AM[05]) - VAR - 334703 - ELECTRONIC LIFT, REAR, CONTROL PANEL, W/ RADAR, NA (55) - ELECTRICAL SYSTEMS
90.160.bl 01
2
9
4
8
home
6
7
3
1
10
4
4
8
5
7
9
4
2
5
9
5
8
5
2
9
6
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47587152

CONTROL PANEL

EDC

1шт.

2

86018882

KNOB

4шт.

3

16101711

NUT,M3, Cl 8

4шт.

4

47677527

NUT,Hex, M8 x 0.75, Cl 8.8

4шт.

5

47677531

WASHER,10.2mm ID x 14mm OD x 1.1mm Thk

4шт.

6

86018881

WASHER

2шт.

7

47470705

LOCKING PLATE

2шт.

8

14330260

SEALING WASHER,M8.2 x 12 x 1

4шт.

9

47677549

RUBBER SEAL,9.5mm ID x 12.5mm OD x 1.2mm Thk

4шт.

10

13270411

SCREW,Cross Rec Pan Hd, M3 x 8mm

4шт.

Выбрано товаров: 10
