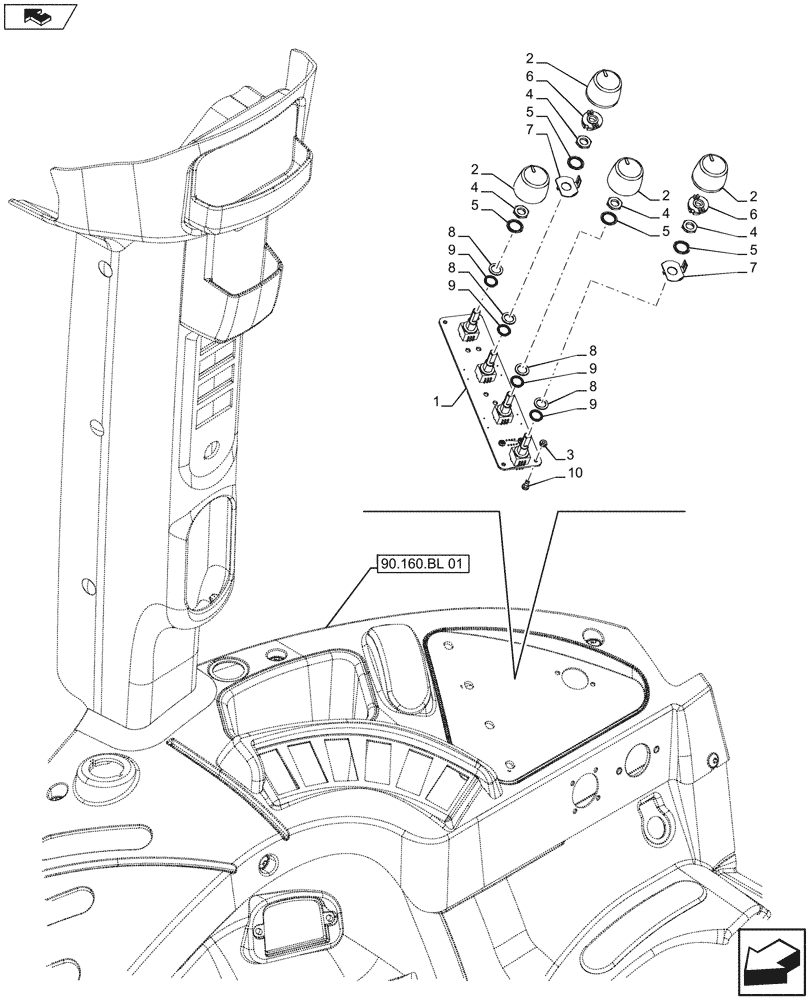

Запчасти Case IH FARMALL 105U (55.523.AM[04]) - VAR - 335703 - ELECTRONIC LIFT, REAR, CONTROL PANEL, W/ RADAR, ISO (55) - ELECTRICAL SYSTEMS

1

47587152

CONTROL PANEL

EDC

1шт.

2

86018882

KNOB

4шт.

3

16101711

NUT,M3, Cl 8

4шт.

4

47677527

NUT,Hex, M8 x 0.75, Cl 8.8

4шт.

5

47677531

WASHER,10.2mm ID x 14mm OD x 1.1mm Thk

4шт.

6

86018881

WASHER

2шт.

7

47470705

LOCKING PLATE

2шт.

8

14330260

SEALING WASHER,M8.2 x 12 x 1

4шт.

9

47677549

RUBBER SEAL,9.5mm ID x 12.5mm OD x 1.2mm Thk

4шт.

10

13270411

SCREW,Cross Rec Pan Hd, M3 x 8mm

4шт.
