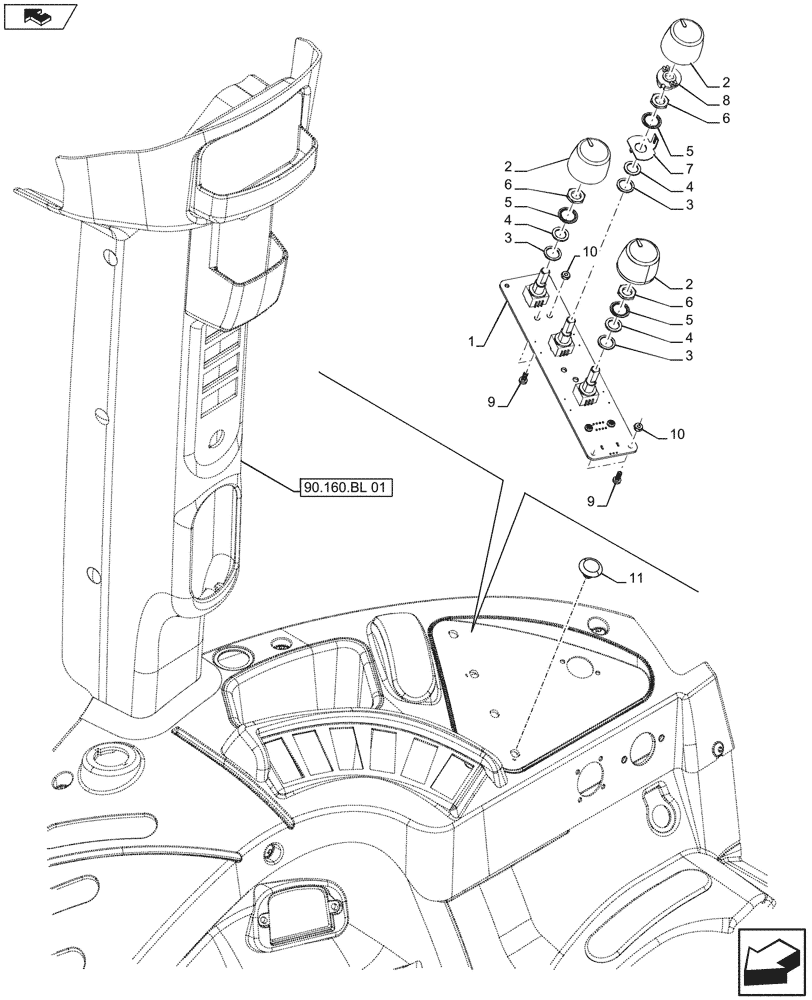

Запчасти Case IH FARMALL 105U (55.523.AM[02]) - STD + VAR - 390703 - ELECTRONIC LIFT, REAR, CONTROL PANEL (55) - ELECTRICAL SYSTEMS

1

47587140

CONTROL PANEL

1шт.

2

86018882

KNOB

3шт.

3

47677549

RUBBER SEAL,9.5mm ID x 12.5mm OD x 1.2mm Thk

3шт.

4

14330260

SEALING WASHER,M8.2 x 12 x 1

3шт.

5

47677531

WASHER,10.2mm ID x 14mm OD x 1.1mm Thk

3шт.

6

47677527

NUT,Hex, M8 x 0.75, Cl 8.8

3шт.

7

47470705

LOCKING PLATE

1шт.

8

86018881

WASHER

1шт.

9

13270411

SCREW,Cross Rec Pan Hd, M3 x 8mm

4шт.

10

16101711

NUT,M3, Cl 8

4шт.

11

5112608

PLUG,9mm, Black

1шт.
