(55.518.AT[02]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - END YR 09-JUN-2013

Запчасти Case IH FARMALL 105U (55.518.AT[02]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - END YR 09-JUN-2013 (55) - ELECTRICAL SYSTEMS

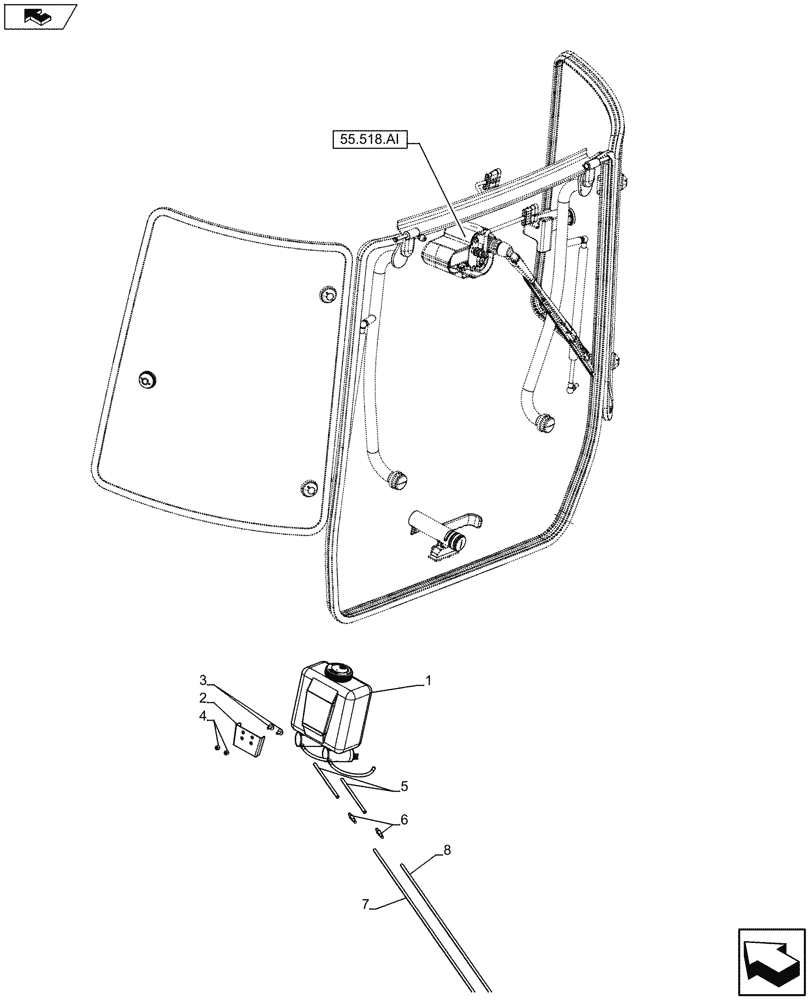

Схема запчастей Case IH FARMALL 105U - (55.518.AT[02]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - END YR 09-JUN-2013 (55) - ELECTRICAL SYSTEMS
55.518.ai
home
3
2
6
1
5
8
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84605277

TANK

Pumps on Bottom are NSS from Tank Assy

1шт.

2

47358647

BRACKET

1шт.

3

14071914

SCREW,Cheese Hd, M5 x 12mm, Cl 5.8

2шт.

4

12574111

NUT,M5 x .8, Cl 8

2шт.

5

84209221

HOSE,4mm ID x 150mm L

Rear Wiper Hose

2шт.

6

5136113

VALVE

2шт.

7

84270726

FLEXIBLE HOSE,4mm ID x 2500 mm L

Rear Wiper Hose

1шт.

8

84209225

HOSE,4mm ID x 3100mm L

1шт.

Выбрано товаров: 8
