(55.518.AT[01A]) - STD + VAR - 390642 - WINDSHIELD WASH RESERVOIR, REAR, W/O REAR WINDSCREEN WIPER - BEGIN YR 10-JUN-2013

Запчасти Case IH FARMALL 105U (55.518.AT[01A]) - STD + VAR - 390642 - WINDSHIELD WASH RESERVOIR, REAR, W/O REAR WINDSCREEN WIPER - BEGIN YR 10-JUN-2013 (55) - ELECTRICAL SYSTEMS

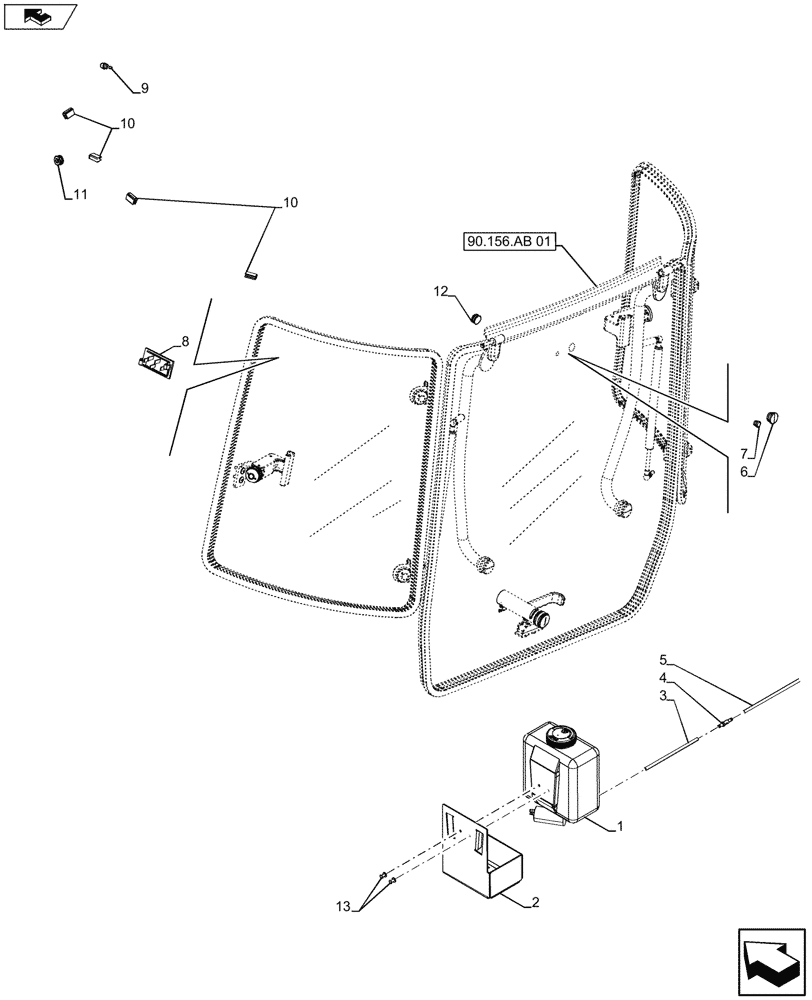

Схема запчастей Case IH FARMALL 105U - (55.518.AT[01A]) - STD + VAR - 390642 - WINDSHIELD WASH RESERVOIR, REAR, W/O REAR WINDSCREEN WIPER - BEGIN YR 10-JUN-2013 (55) - ELECTRICAL SYSTEMS
90.156.ab 01
2
11
13
12
10
4
9
10
3
1
7
5
6
home
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84605279

TANK

Pump on Bottom is NSS from Tank Assy

1шт.

2

47483189

SUPPORT

1шт.

3

84209221

HOSE,4mm ID x 150mm L

1шт.

4

5136113

VALVE

1шт.

5

84209225

HOSE,4mm ID x 3100mm L

1шт.

6

5094071

PLUG

1шт.

7

5094373

PLUG

1шт.

8

5166218

PLUG,Switch

1шт.

9

82030998

NOZZLE

1шт.

10

47456551

CLIP

4шт.

11

47450784

GROMMET

1шт.

12

47450993

PLASTIC PLUG

1шт.

13

14642892

POP RIVET,Truss, M4.8 x 14

2шт.

Выбрано товаров: 13
