Запчасти Case IH FARMALL 105U (10.202.AD[04]) - STD + VAR - 390335 - AIR DUCTS & HOSES, AIR CLEANER (LESS PNEUMATIC TRAILER BRAKE) (10) - ENGINE

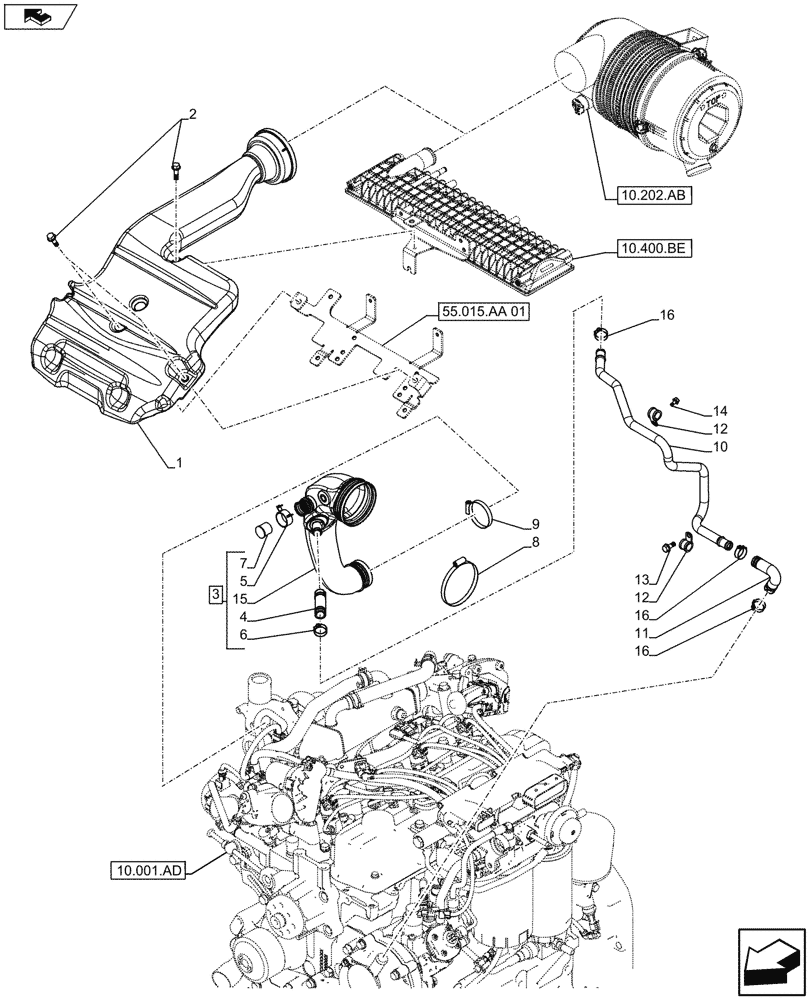

Схема запчастей Case IH FARMALL 105U - (10.202.AD[04]) - STD + VAR - 390335 - AIR DUCTS & HOSES, AIR CLEANER (LESS PNEUMATIC TRAILER BRAKE) (10) - ENGINE
55.015.aa 01
10.400.be
10.202.ab
2
7
8
home
12
5
16
10
16
4
3
9
14
13
12
16
15
1
home
11
6
10.001.ad

Артикул

Название

Примечание

Количество

1

47496202

DUCT

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

3

47397423

DUCT

ASSY, Incl 4 - 7, 15

1шт.

4

47397420

SLEEVE,16.7mm ID x 72mm L

1шт.

5

47555022

HOSE CLAMP

12mm - 29mm

1шт.

6

13127670

PIPE CLAMP,27mm - 24mm

1шт.

7

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

8

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

10

47390633

PIPE

Blow-By Rigid

1шт.

11

84581948

SLEEVE,16.7mm ID x 122.6mm L

1шт.

12

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

2шт.

13

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

14

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

15

NSS

NOT SOLD SEPARAT

Duct, Incl in 3

1шт.

16

82039343

HOSE CLAMP,16mm - 27mm

3шт.

Выбрано товаров: 16
