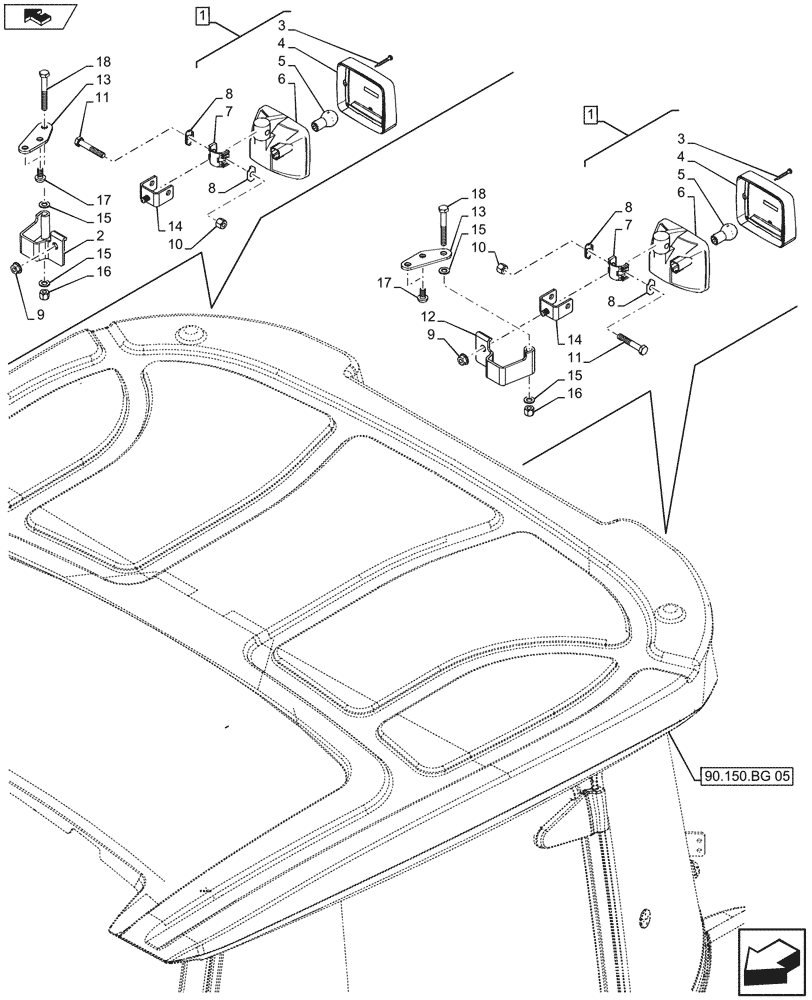

Запчасти Case IH FARMALL 105U (55.404.BS[02]) - VAR - 331735, 331744, 335717, 336717 - WORK LAMP, ROOF-MOUNTED, ISO (55) - ELECTRICAL SYSTEMS

1

84299527

LAMP,Halogen, 12V, 55W, Clear Lens

ASSY, Incl 3 - 8

2шт.

2

84317200

BRACKET

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

4

NSS

NOT SOLD SEPARAT

Lens, Incl in 1

2шт.

5

14151590

BULB,H3, 12V, 55W

12V, 55W, H3

2шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

2шт.

7

47528612

BRACKET

2шт.

8

47528601

BRACKET

4шт.

9

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

10

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

11

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

12

84317199

BRACKET

1шт.

13

84317198

COVER PLATE

2шт.

14

84317204

BRACKET

2шт.

15

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

16

16104127

NUT,M8 x 1.25, Cl 10

2шт.

17

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

4шт.

18

16044534

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.
