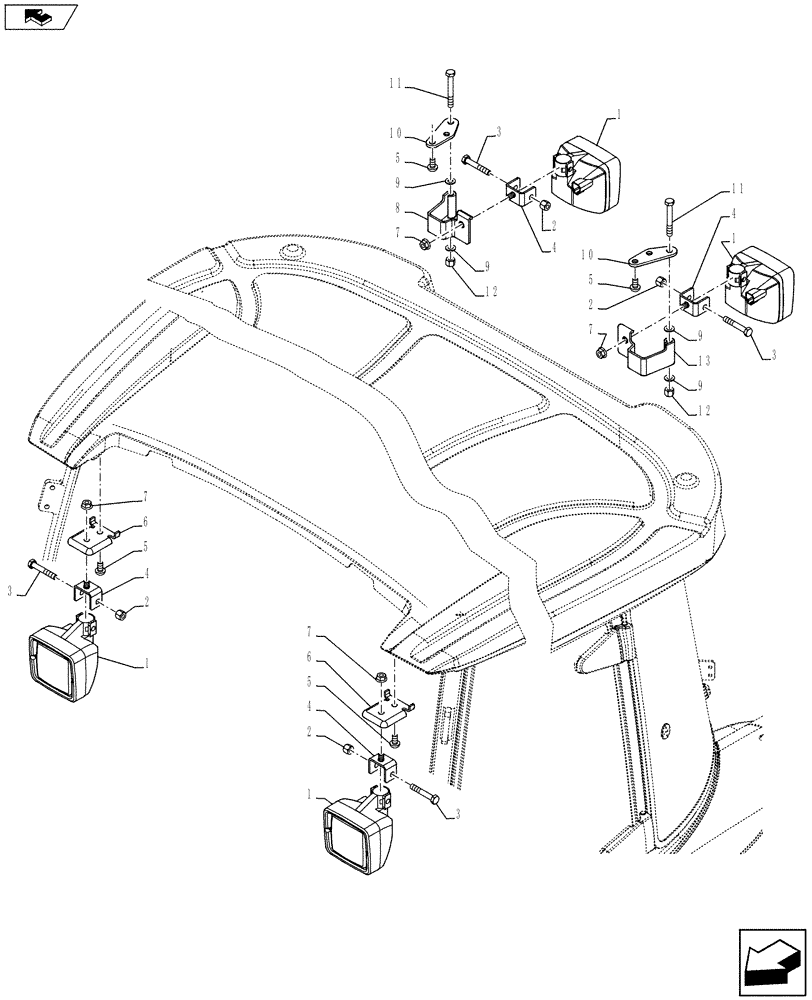

Запчасти Case IH FARMALL 105U (55.404.BS[01]) - STD + VAR - 331714, 390713 - WORK LAMP, ROOF-MOUNTED, ISO (55) - ELECTRICAL SYSTEMS

1

84299527

LAMP,Halogen, 12V, 55W, Clear Lens

H3

4шт.

2

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

4шт.

3

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

4

84317204

BRACKET

Rear

2шт.

5

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

6шт.

6

47436428

BRACKET

Front

2шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

8

84317200

BRACKET

RH Rear

1шт.

9

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

84317198

COVER PLATE

2шт.

11

16044534

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

12

16104127

NUT,M8 x 1.25, Cl 10

2шт.

13

84317199

BRACKET

LH Rear

1шт.
