Запчасти Case IH FARMALL 105U (55.404.AC[02]) - VAR - 335916 - 2 ROTARY BEACON, ISO - END YR 02-JUL-2015 (55) - ELECTRICAL SYSTEMS

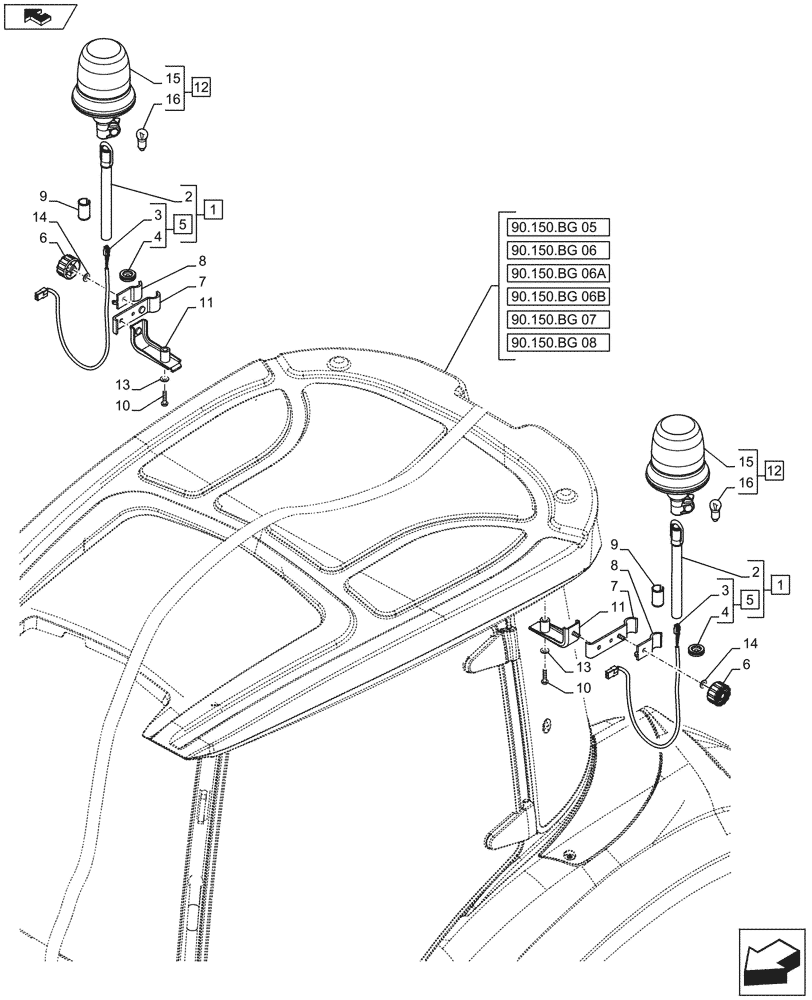

Схема запчастей Case IH FARMALL 105U - (55.404.AC[02]) - VAR - 335916 - 2 ROTARY BEACON, ISO - END YR 02-JUL-2015 (55) - ELECTRICAL SYSTEMS
90.150.bg 06
7
9
2
12
1
3
5
9
11
2
4
11
8
13
16
home
4
13
1
15
10
5
6
6
14
7
8
3
14
12
10
16
15
90.150.bg 08
90.150.bg 07
90.150.bg 06b
90.150.bg 06a
90.150.bg 05

Артикул

Название

Примечание

Количество

1

84592146

WIRE HARNESS

Beacon Adapter, Incl 2 - 5

2шт.

2

82027653

SUPPORT

2шт.

3

NSS

NOT SOLD SEPARAT

Harness, Incl in 5

2шт.

4

10397780

INSULATING RING

2шт.

5

84296837

ELECTRIC CABLE

Beacon Cable, ASSY, Incl 3, 4

2шт.

6

82016257

KNOB

Rear View Outside Mirror Adjusting

4шт.

7

84343028

BRACKET

Black

2шт.

8

82028975

BRACKET

2шт.

9

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

2шт.

10

14302226

SCREW

2шт.

11

84343080

BRACKET

Black

2шт.

12

87723255

BEACON,12V, 55W, Amber

ASSY, Incl 15, 16

2шт.

13

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

NSS

NOT SOLD SEPARAT

Body Lamp, Incl in 12

1шт.

16

86616248

BULB,H1, 12V, 55W

1шт.

Выбрано товаров: 16
