(55.404.AC[01A]) - VAR - 331916 - ROTARY BEACON, RIGHT SIDE - BEGIN YR 03-JUL-2015

Запчасти Case IH FARMALL 105U (55.404.AC[01A]) - VAR - 331916 - ROTARY BEACON, RIGHT SIDE - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS

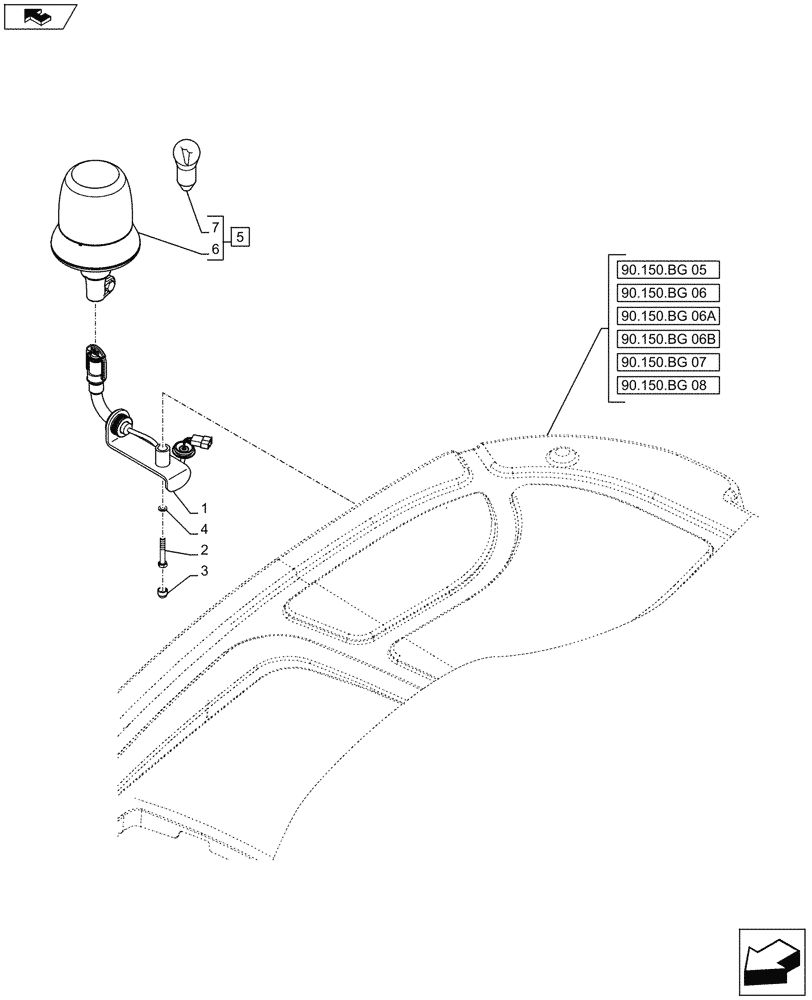

Схема запчастей Case IH FARMALL 105U - (55.404.AC[01A]) - VAR - 331916 - ROTARY BEACON, RIGHT SIDE - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS
90.150.bg 06
7
5
3
2
4
6
1
home
90.150.bg 08
90.150.bg 07
90.150.bg 06b
90.150.bg 06a
90.150.bg 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47788366

SUPPORT

1шт.

2

16606124

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87516431

CUP,for M8 Nut

1шт.

4

12602474

WAVE WASHER,Wave, M8.3

1шт.

5

87723255

BEACON,12V, 55W, Amber

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Body Lamp, Incl in 5

1шт.

7

86616248

BULB,H1, 12V, 55W

1шт.

Выбрано товаров: 7
