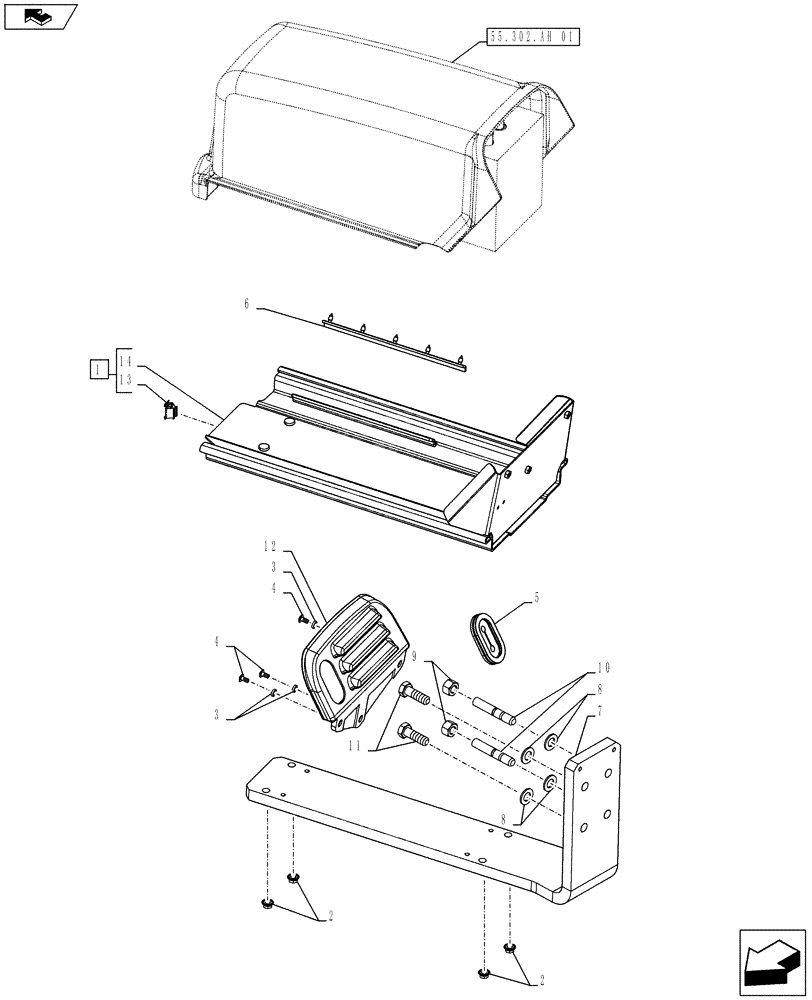

Запчасти Case IH FARMALL 105U (55.302.AK) - STD + VAR - 391741 - BATTERY TRAY (55) - ELECTRICAL SYSTEMS

1

84535790

SUPPORT

ASSY, Incl 13, 14

1шт.

2

13046211

NUT,Flange Hex, M8

4шт.

3

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

3шт.

4

87698795

SCREW,M6 x 12mm

3шт.

5

5166223

SEAL

1шт.

6

5174457

PAD

1шт.

7

84535783

BRACKET

For Battery Support

1шт.

8

87016605

WASHER,15.5mm ID x 28mm OD x 2.5mm Thk

4шт.

9

10790421

NUT,M14 x 1.5, Cl 10

2шт.

10

84535954

STUD

2шт.

11

11394331

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

2шт.

12

84536561

COVER

Battery Closer

1шт.

13

83991620

RETAINER

1шт.

14

NSS

NOT SOLD SEPARAT

Battery Support, Incl in 1

1шт.
