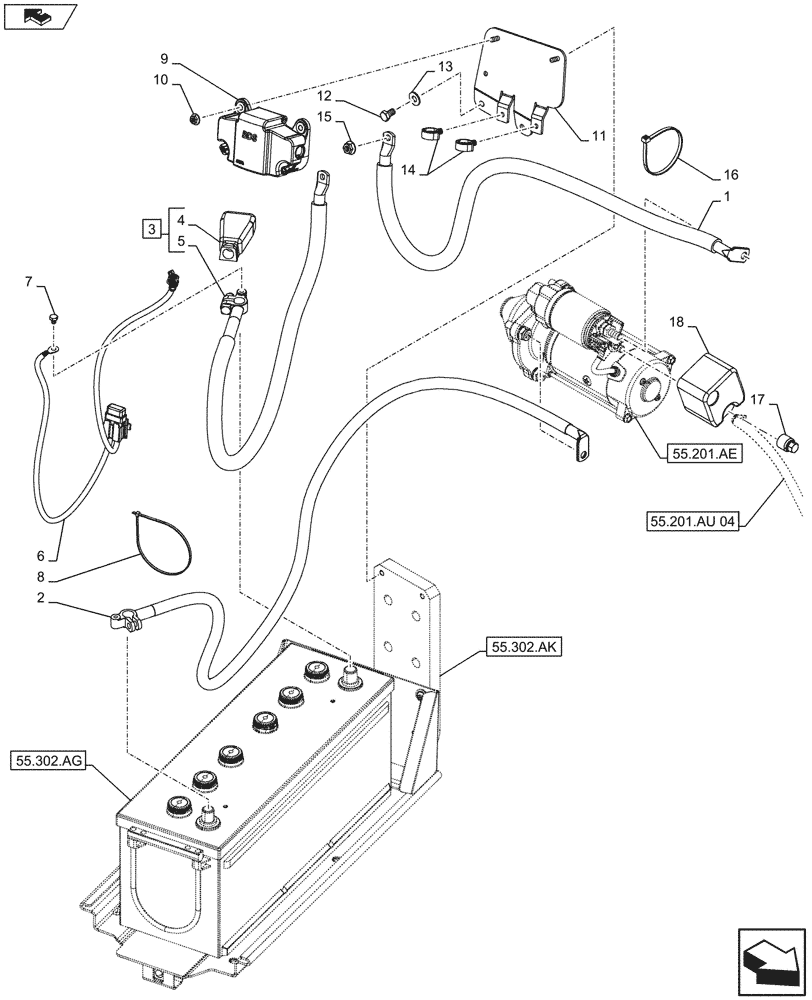

Запчасти Case IH FARMALL 105U (55.302.AI[03]) - VAR - 330798 - BATTERY CUT-OUT, ISO (55) - ELECTRICAL SYSTEMS

1

84547749

HARNESS

Positive, BDS-STA

1шт.

2

87487740

NEG BATTERY CABLE,1250mm L

Negative, 1300 CCA

1шт.

3

84547748

HARNESS

ASSY, Positive, Incl 4, 5

1шт.

4

87349624

DUST CAP,15.5mm OD, 46.5mm W x 23mm Thk x 94mm L

1шт.

5

NSS

NOT SOLD SEPARAT

Positive Battery Cable, Incl in 3

1шт.

6

84547751

HARNESS

KAM Extension

1шт.

7

11635714

BOLT,M6 x 8mm

1шт.

8

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

3шт.

9

87716664

SUPPORT

Battery Disconnection

1шт.

10

13046111

LOCK NUT,Flg Lock, M6

2шт.

11

84547991

BRACKET

, Years: -10-MAR-13

1шт.

11

47457943

BRACKET

, Start Year: 11-MAR-13

1шт.

12

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

87494016

CLIP,NW17

2шт.

15

14084814

FLANGE NUT,M8 x 1.25, Flg

2шт.

16

14560287

CABLE TIE,207.00mm L

3шт.

17

5171012

NUT,M10

1шт.

18

87309612

COVER

1шт.
