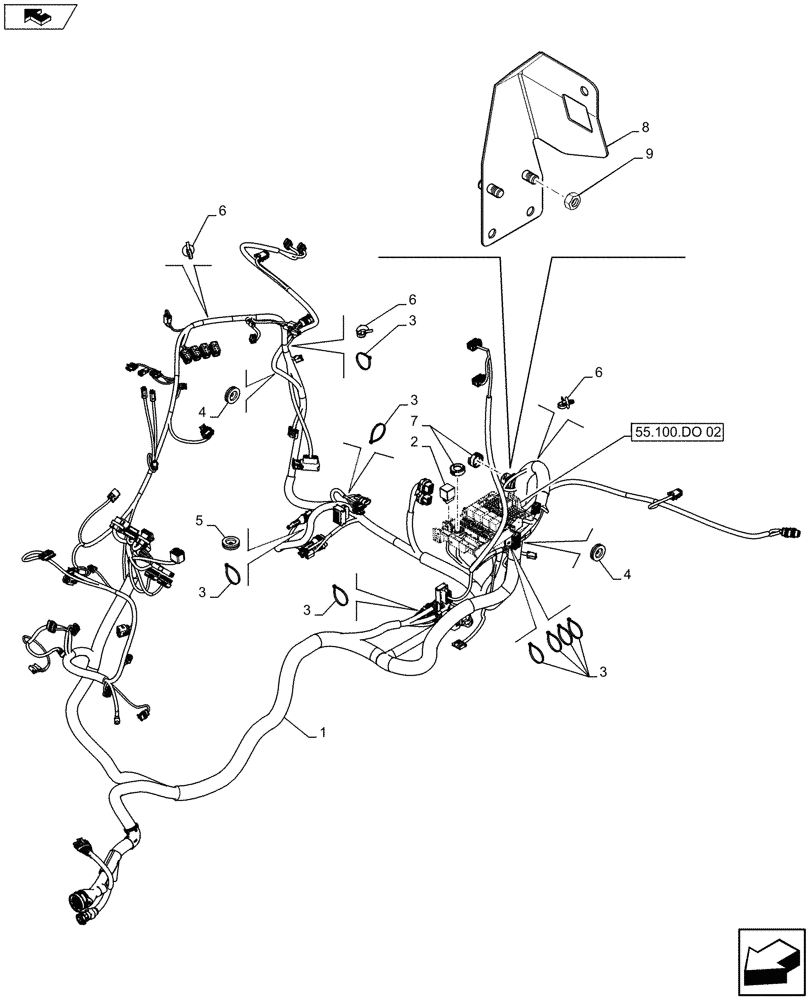

Запчасти Case IH FARMALL 105U (55.100.AI[03A]) - STD + VAR - 390754 - MAIN HARNESS, NA - BEGIN YR 11-MAR-2013 (55) - ELECTRICAL SYSTEMS

1

47458856

WIRE HARNESS

ASSY, Years: 11-MAR-13-03-JUL-13

1шт.

1

47502765

WIRE HARNESS

ASSY, Years: 04-JUL-13-23-JUL-15

1шт.

1

47798148

WIRE HARNESS

ASSY, Start Year: 24-JUL-15

1шт.

2

1-40-258-090

RELAY,12V

1шт.

3

14560187

COLLAR,199mm L

10шт.

4

10396980

INSULATING RING

D28 x 1.5mm

2шт.

5

10397980

INSULATING RING

D28 x 2.5mm

1шт.

6

82033028

CABLE TIE,170mm L

3шт.

7

87538104

PROTECTION CAP

2шт.

8

47579195

BRACKET

1шт.

9

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.
