Запчасти Case IH FARMALL 105U (55.100.AI[02A]) - STD + VAR - 390754 - MAIN HARNESS, CABLE CLIP, BRACKET, ISO - BEGIN YR 11-MAR-2013 (55) - ELECTRICAL SYSTEMS

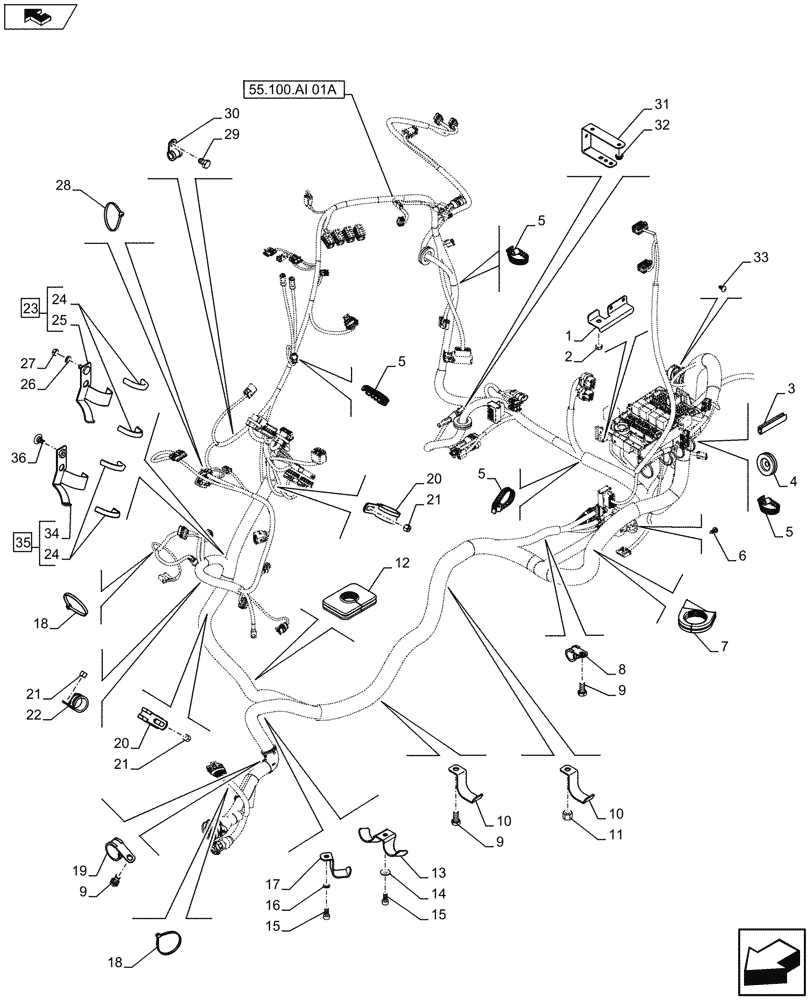

Схема запчастей Case IH FARMALL 105U - (55.100.AI[02A]) - STD + VAR - 390754 - MAIN HARNESS, CABLE CLIP, BRACKET, ISO - BEGIN YR 11-MAR-2013 (55) - ELECTRICAL SYSTEMS
55.100.ai 01a
33
30
11
36
23
19
13
26
10
6
16
14
15
35
5
27
8
25
5
9
21
20
24
18
2
12
34
7
17
15
home
5
21
21
1
29
28
24
32
4
9
9
10
3
18
22
20
31
5

Артикул

Название

Примечание

Количество

1

84474008

BRACKET

Wiper Motor Timer

1шт.

2

15896211

NUT,M6, Cl 8

1шт.

3

87747801

SEAL,60mm L

1шт.

4

10397780

INSULATING RING

D30 x 2.5mm

1шт.

5

85805383

CABLE TIE

170mm

5шт.

6

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

7

84550801

GROMMET

1шт.

8

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

10

84530712

BRACKET

Cab Floor

3шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

12

84408117

GROMMET

1шт.

13

84564064

BRACKET

1шт.

14

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

15

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

16

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

17

84530713

BRACKET

Front Cab Floor

1шт.

18

14560187

COLLAR,199mm L

2шт.

19

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

20

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

2шт.

21

12574211

NUT,M6 x 1, Cl 8

3шт.

22

10419501

CLAMP,22mm, Coat, P Type

1шт.

23

47574051

BRACKET

ASSY, Incl 24, 25, Years: -16-OCT-14

1шт.

24

5191016

SEAL,75mm L

75mm

2шт.

25

NSS

NOT SOLD SEPARAT

Bracket, Incl in 23

1шт.

26

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

, Years: -16-OCT-14

1шт.

27

15896214

NUT,M6, Cl 8

, Years: -16-OCT-14

1шт.

28

14560287

CABLE TIE,207.00mm L

1шт.

29

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

30

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

31

47463509

SUPPORT

1шт.

32

13046111

LOCK NUT,Flg Lock, M6

2шт.

33

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

34

NSS

NOT SOLD SEPARAT

Bracket, Incl in 35

1шт.

35

47679047

BRACKET

ASSY, Incl 24, 34, Start Year: 17-OCT-14

1шт.

36

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

, Start Year: 17-OCT-14

1шт.

Выбрано товаров: 36
