Запчасти Case IH FARMALL 105U (55.100.AI[02]) - STD + VAR - 390754 - MAIN HARNESS, CABLE CLIP, BRACKET, ISO - END YR 10-MAR-2013 (55) - ELECTRICAL SYSTEMS

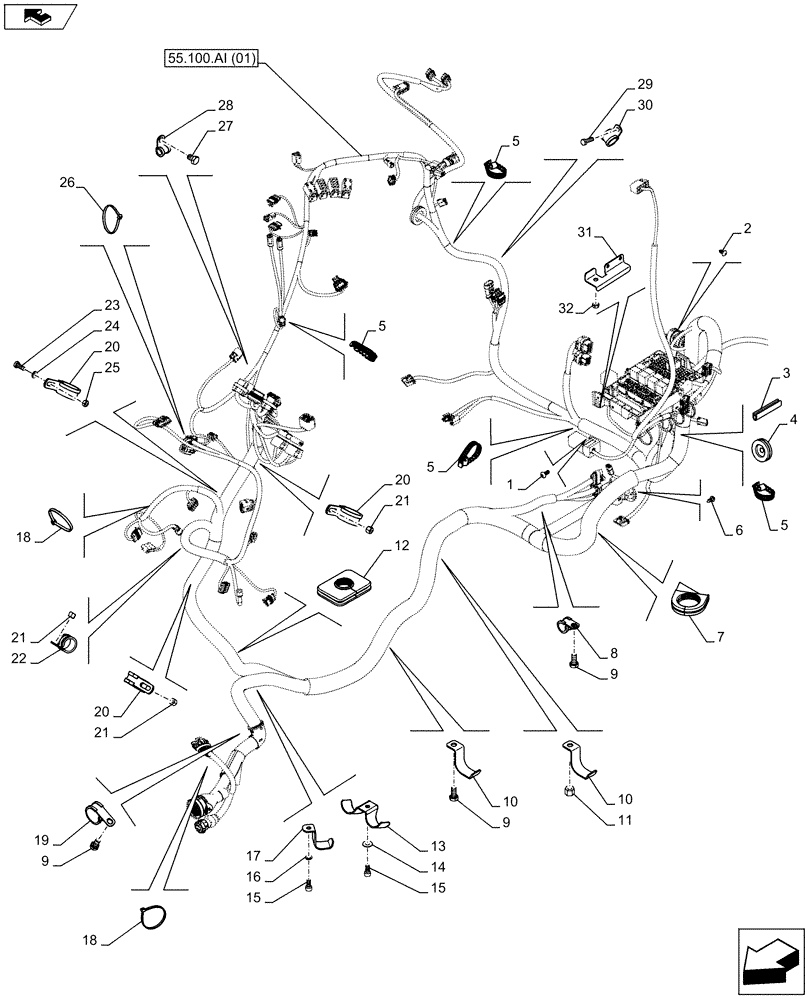

Схема запчастей Case IH FARMALL 105U - (55.100.AI[02]) - STD + VAR - 390754 - MAIN HARNESS, CABLE CLIP, BRACKET, ISO - END YR 10-MAR-2013 (55) - ELECTRICAL SYSTEMS
55.100.ai (01)
19
18
23
10
11
4
15
9
20
32
6
5
15
9
21
24
home
16
18
21
14
5
28
27
3
13
21
25
29
30
12
1
26
31
17
5
20
22
7
8
2
10
9
5
20

Артикул

Название

Примечание

Количество

1

13274024

SCREW,Pozidriv Pan Hd, M5 x 12mm, Cl 8.8, Full Thd

1шт.

2

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

3

87747801

SEAL,60mm L

1шт.

4

10397780

INSULATING RING

D30 x 2.5mm

1шт.

5

85805383

CABLE TIE

170mm

5шт.

6

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

7

84550801

GROMMET

1шт.

8

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

10

84530712

BRACKET

Cab Floor

3шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

12

84408117

GROMMET

1шт.

13

84564064

BRACKET

1шт.

14

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

15

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

16

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

17

84530713

BRACKET

Front Cab Floor

1шт.

18

14560187

COLLAR,199mm L

2шт.

19

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

20

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

3шт.

21

12574211

NUT,M6 x 1, Cl 8

3шт.

22

10419501

CLAMP,22mm, Coat, P Type

1шт.

23

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

24

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

25

15896214

NUT,M6, Cl 8

1шт.

26

14560287

CABLE TIE,207.00mm L

1шт.

27

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

28

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

30

10418701

CLAMP,28mm, Coat, P Type

1шт.

31

84474008

BRACKET

Wiper Motor Timer

1шт.

32

15896211

NUT,M6, Cl 8

1шт.

Выбрано товаров: 32
