(55.051.AA[01]) - VAR - 330641, 331641 - AIR CONDITIONING, CONTROL PANEL

Запчасти Case IH FARMALL 105U (55.051.AA[01]) - VAR - 330641, 331641 - AIR CONDITIONING, CONTROL PANEL (55) - ELECTRICAL SYSTEMS

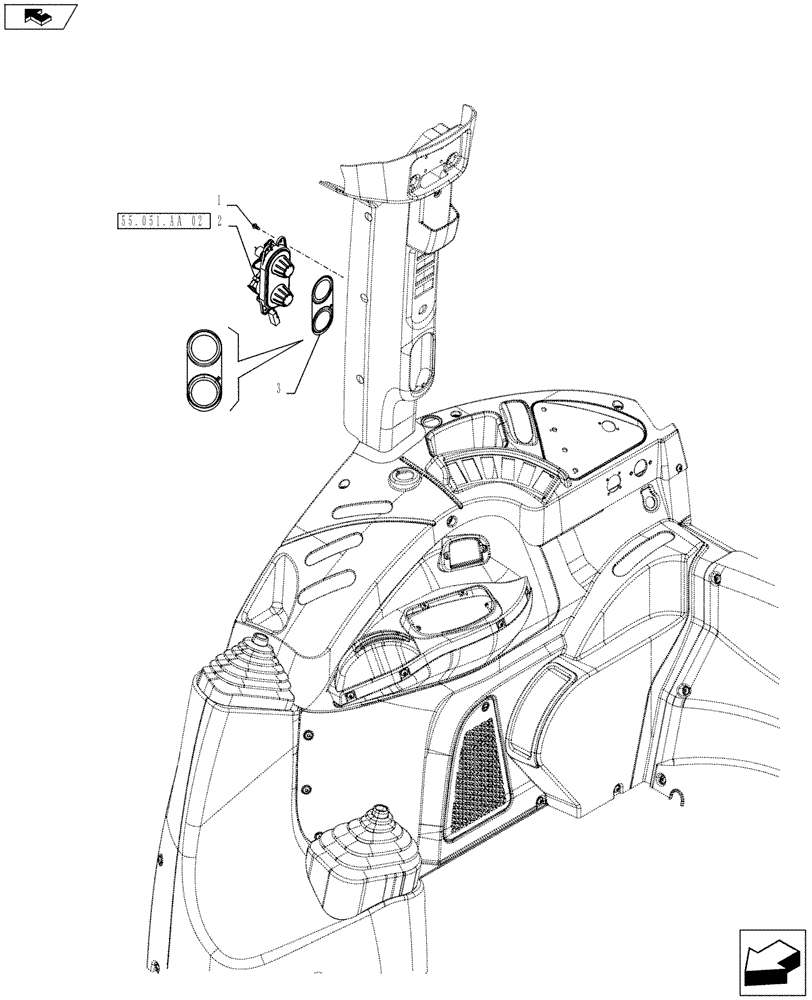

Схема запчастей Case IH FARMALL 105U - (55.051.AA[01]) - VAR - 330641, 331641 - AIR CONDITIONING, CONTROL PANEL (55) - ELECTRICAL SYSTEMS
home
3
1
2
55.051.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15516201

SCREW,Hex, M4 x 2.5 x 12mm

4шт.

2

84296746

CONTROL

Air Conditioner Control Panel

1шт.

3

84349885

DECAL

Air Conditioner Control Panel

1шт.

Выбрано товаров: 3
