(55.046.AH) - STD + VAR - 743933 - DIFF LOCK SWITCH

Запчасти Case IH FARMALL 105U (55.046.AH) - STD + VAR - 743933 - DIFF LOCK SWITCH (55) - ELECTRICAL SYSTEMS

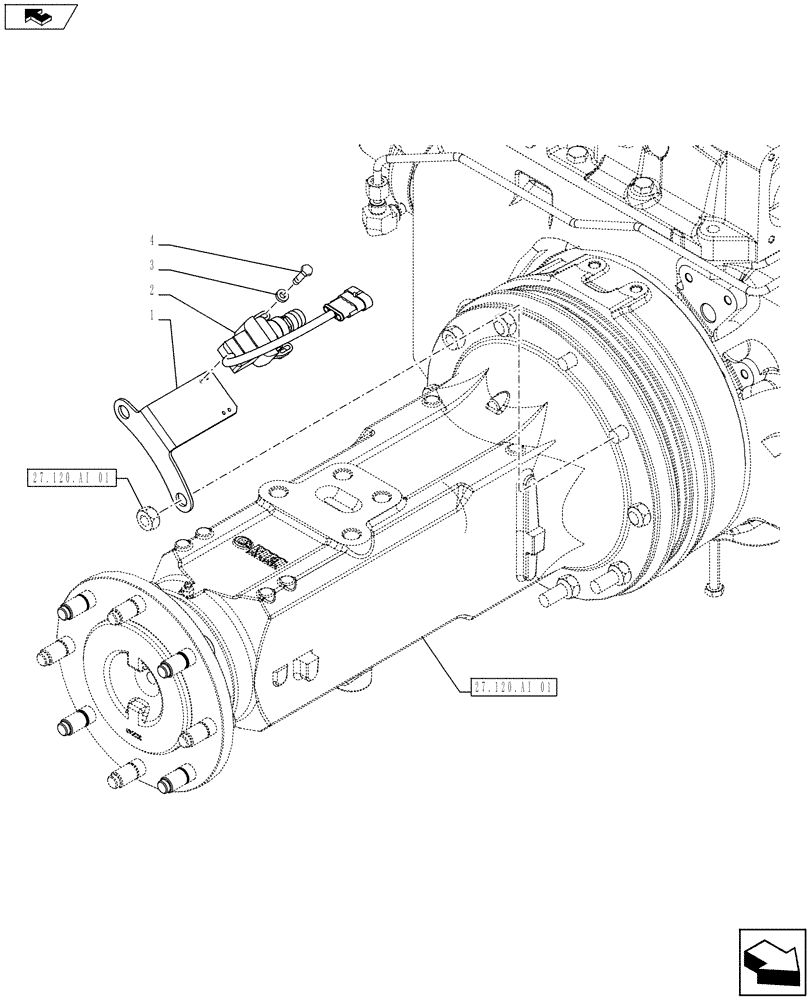

Схема запчастей Case IH FARMALL 105U - (55.046.AH) - STD + VAR - 743933 - DIFF LOCK SWITCH (55) - ELECTRICAL SYSTEMS
27.120.ai 01
2
3
1
4
home
27.120.ai 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5182316

BRACKET

1шт.

2

87302930

SWITCH

Snap Action Push, Years: -18-NOV-12

1шт.

2

47137022

SWITCH

Snap Action Push, Start Year: 19-NOV-12

1шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

4

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

Выбрано товаров: 5
