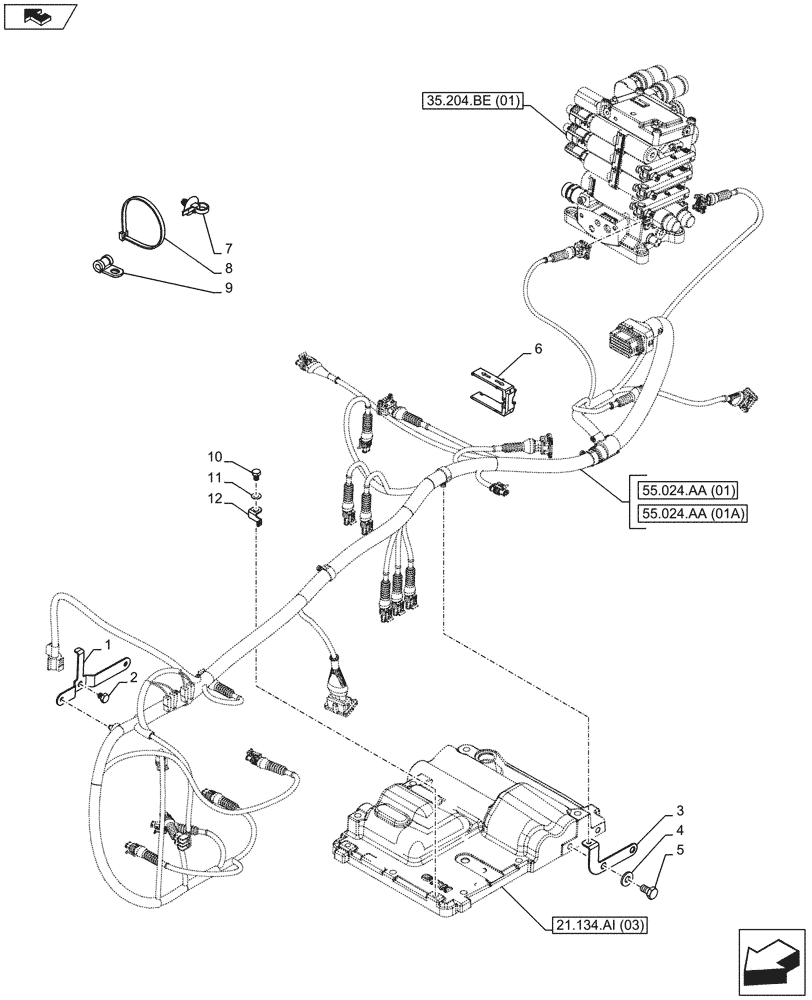

Запчасти Case IH FARMALL 105U (55.024.AA[03]) - VAR - 332279 - HARNESS, CLIP, BRACKET - TRANSMISSION (55) - ELECTRICAL SYSTEMS

1

84494786

BRACKET

Transmission Connector

1шт.

2

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

3

84522280

BRACKET

Driveline Harness Support

1шт.

4

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.

5

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

6

87318389

LOCKING DEVICE

1шт.

7

82033028

CABLE TIE,170mm L

3шт.

8

14560187

COLLAR,199mm L

7шт.

9

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

10

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

11

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

1шт.

12

84494787

BRACKET

1шт.
