Запчасти Case IH FARMALL 105U (55.015.AB[04]) - STD + VAR - 390174 - ENGINE - ELECTRIC CABLE, CLIP, BRACKET - LESS BATTERY DISCONNECTED SWITCH - NA (55) - ELECTRICAL SYSTEMS

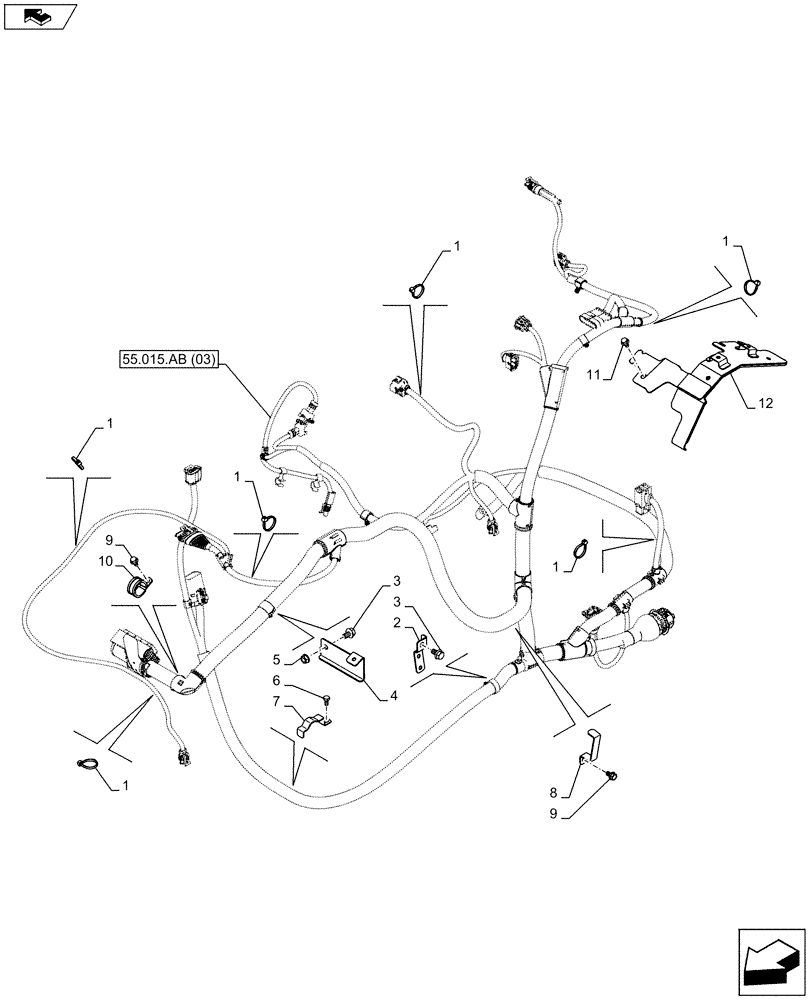

Схема запчастей Case IH FARMALL 105U - (55.015.AB[04]) - STD + VAR - 390174 - ENGINE - ELECTRIC CABLE, CLIP, BRACKET - LESS BATTERY DISCONNECTED SWITCH - NA (55) - ELECTRICAL SYSTEMS
55.015.ab (03)
3
home
2
3
1
1
1
12
8
4
11
1
7
9
1
9
1
10
6
5

Артикул

Название

Примечание

Количество

1

14560087

CABLE TIE,103mm, Black

11шт.

2

84590316

BRACKET

1шт.

3

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

4

47374988

CONTROL

1шт.

5

14084411

LOCK NUT,Hex, M8 x 1.25

M8

1шт.

6

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

7

47397258

BRACKET

1шт.

8

84554441

BRACKET

1шт.

9

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

10

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

1шт.

11

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

12

84560637

BRACKET

ASM

1шт.

Выбрано товаров: 12
