(55.014.AE[02]) - VAR - 332229 - AIR CLEANER & INTAKE PARTS, TEMPERATURE SENDER, ISO

Запчасти Case IH FARMALL 105U (55.014.AE[02]) - VAR - 332229 - AIR CLEANER & INTAKE PARTS, TEMPERATURE SENDER, ISO (55) - ELECTRICAL SYSTEMS

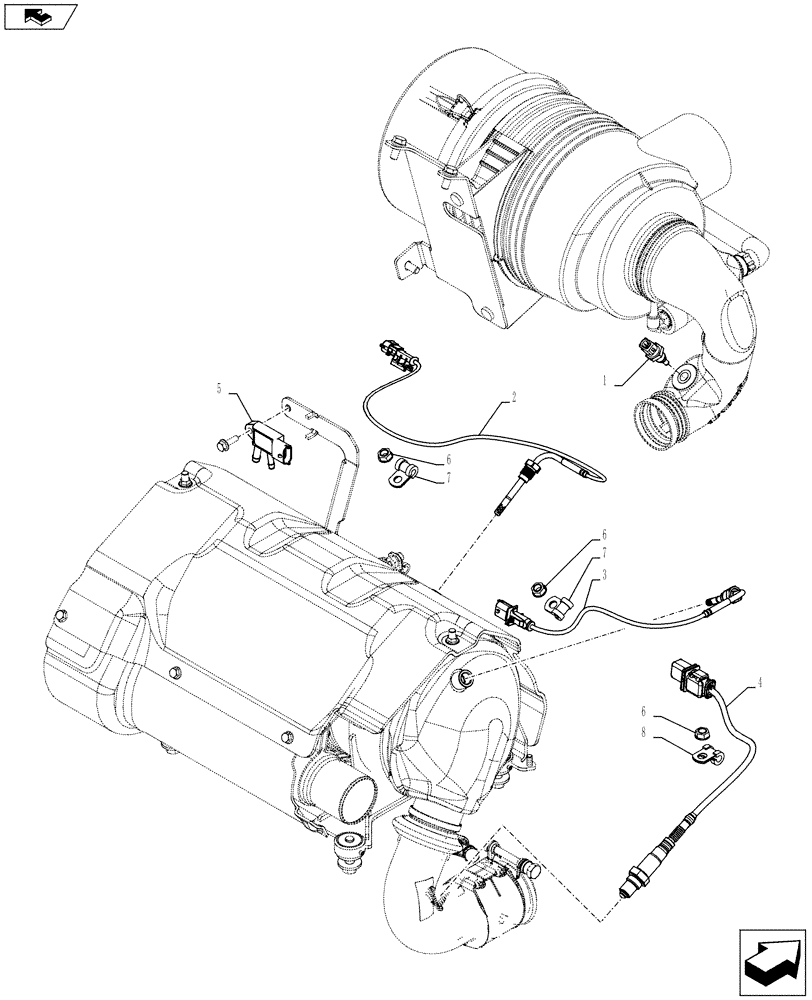

Схема запчастей Case IH FARMALL 105U - (55.014.AE[02]) - VAR - 332229 - AIR CLEANER & INTAKE PARTS, TEMPERATURE SENDER, ISO (55) - ELECTRICAL SYSTEMS
home
6
7
1
6
3
7
8
2
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84539252

SENSOR

Air Temperature

1шт.

2

47478894

TEMPERATURE SENDER,50mm L

Exhaust Temperature

1шт.

3

47478866

TEMPERATURE SENDER,35mm L

Exhaust Temperature

1шт.

4

84286040

SENSOR

Lambda UHEGO

1шт.

5

84286249

SENSOR

DPF Delta Pressure

1шт.

6

14084211

LOCK NUT,Hex, M6 x 1

3шт.

7

10440890

CLAMP,5mm, Coat, P Type

2шт.

8

10440990

CLAMP,6mm, Coat, P Type

1шт.

Выбрано товаров: 8
