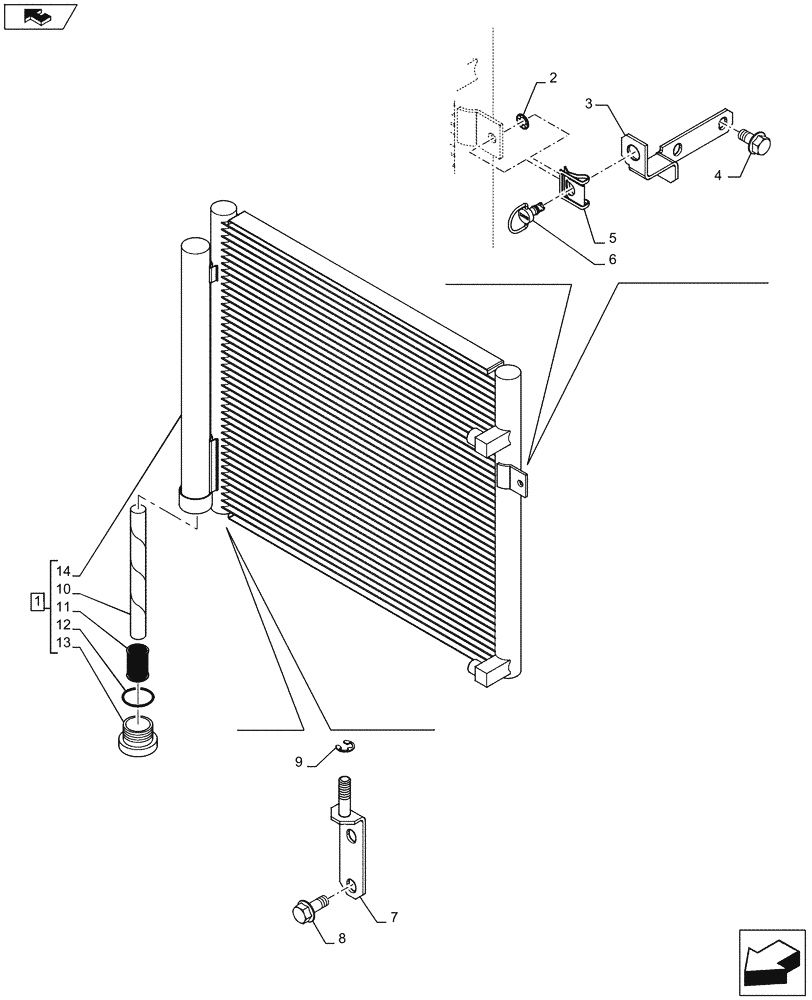

Запчасти Case IH FARMALL 105U (50.200.AK[01]) - VAR - 330641, 331641 - AIR CONDITIONING, CONDENSER, FRONT (50) - CAB CLIMATE CONTROL

1

84313996

CONDENSER

Assy, Incl 10 - 14

1шт.

2

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

3

47410719

BRACKET

1шт.

4

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

5

82004582

CLIP,Square, 25mm

1шт.

6

87614935

STUD,6mm OD

1шт.

7

84397369

PIVOT

2шт.

8

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

9

11087974

CIRCLIP,Ext., M8, DAC

2шт.

10

47465072

RECEIVER-DRYER

1шт.

11

47465067

KIT

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Condenser, Incl in 1

1шт.
