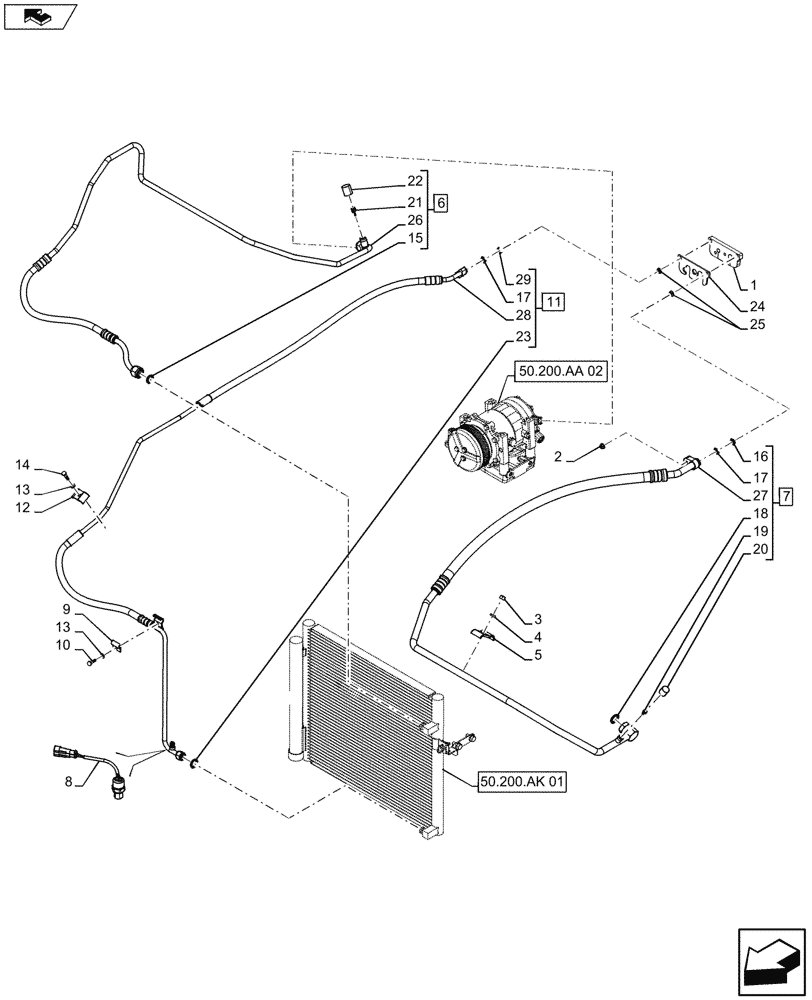

Запчасти Case IH FARMALL 105U (50.200.AB[03]) - VAR - 331641 - AIR CONDITIONING, HOSE, W/ SAFETY VALVE (50) - CAB CLIMATE CONTROL

1

47443947

PLATE

1шт.

2

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

3

10720114

NUT,Hex, M6 x 1

1шт.

4

12649601

WASHER,6.15mm ID x 11.5mm OD x 2.5mm Thk

1шт.

5

84476872

BRACKET

1шт.

6

84481169

A/C HOSE

ASSY, Incl 15, 21, 22, 26

1шт.

7

84479671

A/C HOSE

ASSY, Incl 16, 17 (Qty 1), 18 - 20, 27

1шт.

8

84476682

PRESSURE SWITCH

1шт.

9

84577651

BRACKET

1шт.

10

10902031

BOLT,Hex, M6 x 12mm, Cl 10.9

1шт.

11

84479666

A/C HOSE

ASSY, Incl 17 (Qty 1), 23, 28, 29

1шт.

12

84475360

BRACKET

1шт.

13

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

14

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

1шт.

15

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

16

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.

17

10319983

O-RING,1.6mm Thk x 16.1mm ID

2шт.

18

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

19

414083A1

VALVE

1шт.

20

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

1шт.

21

414082A1

CORE

1шт.

22

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

1шт.

23

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

24

47443943

GASKET

1шт.

25

13046011

NUT,Flange Hex, M5

2шт.

26

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

1шт.

27

NSS

NOT SOLD SEPARAT

Hose, Incl in 7

1шт.

28

NSS

NOT SOLD SEPARAT

Hose, Incl in 11

1шт.

29

14450483

O-RING,1.8mm Thk x 6.7mm ID

1шт.
