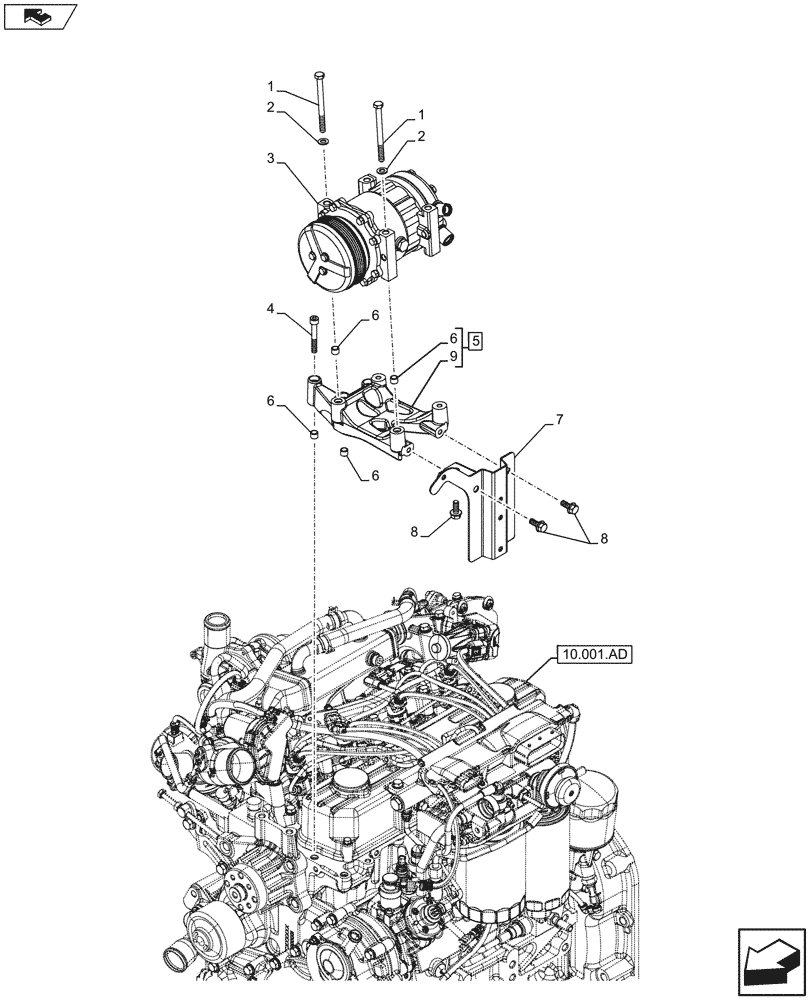

Запчасти Case IH FARMALL 105U (50.200.AA[02]) - VAR - 330641, 331641 - AIR CONDITIONING, COMPRESSOR - END YR 13-JAN-2013 (50) - CAB CLIMATE CONTROL

1

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

84290377

AIRCOND. COMPRESSOR,12V

1шт.

84290377R

Reman-A/C Compressor

REMAN-A/C COMPRESSOR,REMAN-A/C COMPRESSOR

1шт.

84290377C

Return Number

CORE-A/C COMPRESSOR,CORE-A/C COMPRESSOR

1шт.

4

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

3шт.

5

84317615

SUPPORT

Compressor, ASSY, Incl 6, 9

1шт.

6

87674545

BUSHING,8.5mm ID x 11.15mm OD x 9mm L

4шт.

7

47357390

BRACKET

1шт.

8

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

3шт.

9

NSS

NOT SOLD SEPARAT

Support, Incl in 5

1шт.
