(50.100.AC[03]) - STD + VAR - 330641, 331641, 390641 - HEATING SYSTEM, HYDR LINES

Запчасти Case IH FARMALL 105U (50.100.AC[03]) - STD + VAR - 330641, 331641, 390641 - HEATING SYSTEM, HYDR LINES (50) - CAB CLIMATE CONTROL

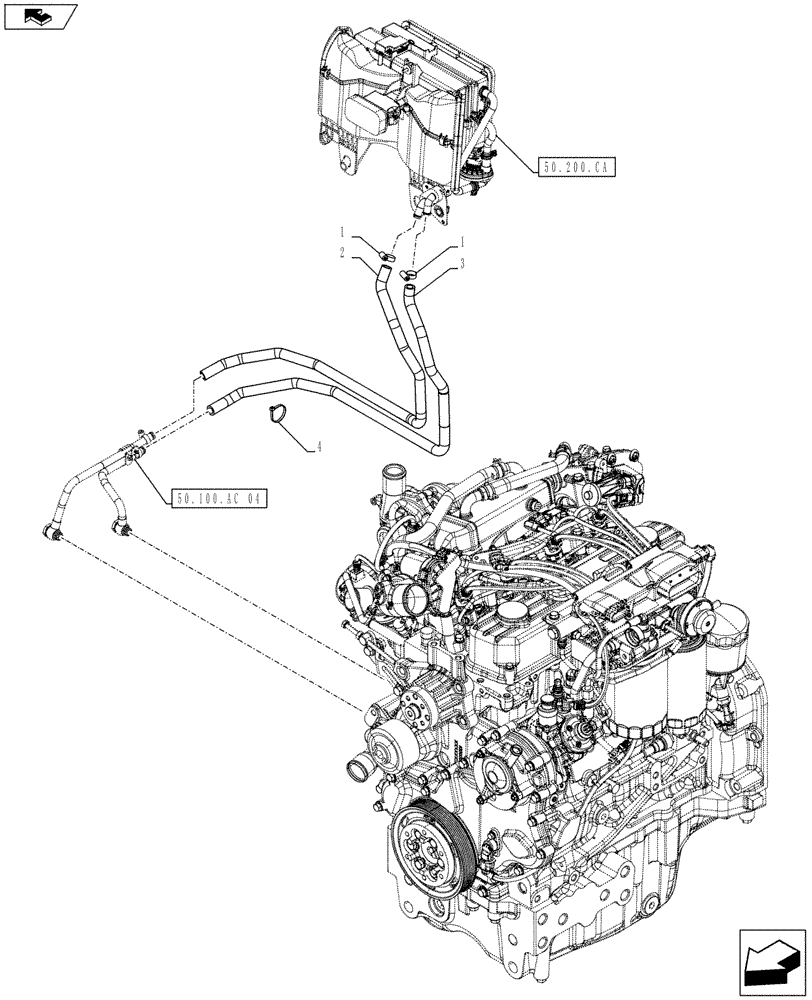

Схема запчастей Case IH FARMALL 105U - (50.100.AC[03]) - STD + VAR - 330641, 331641, 390641 - HEATING SYSTEM, HYDR LINES (50) - CAB CLIMATE CONTROL
50.100.ac 04
3
1
1
2
4
home
50.200.ca
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

2

84588459

HEATER HOSE

Heater

1шт.

3

84588462

HEATER HOSE

Heater

1шт.

4

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

1шт.
