(44.520.AB[06A]) - WHEEL - REAR - BEGIN S/N ZCJR23173

Запчасти Case IH FARMALL 105U (44.520.AB[06A]) - WHEEL - REAR - BEGIN S/N ZCJR23173 (44) - WHEELS

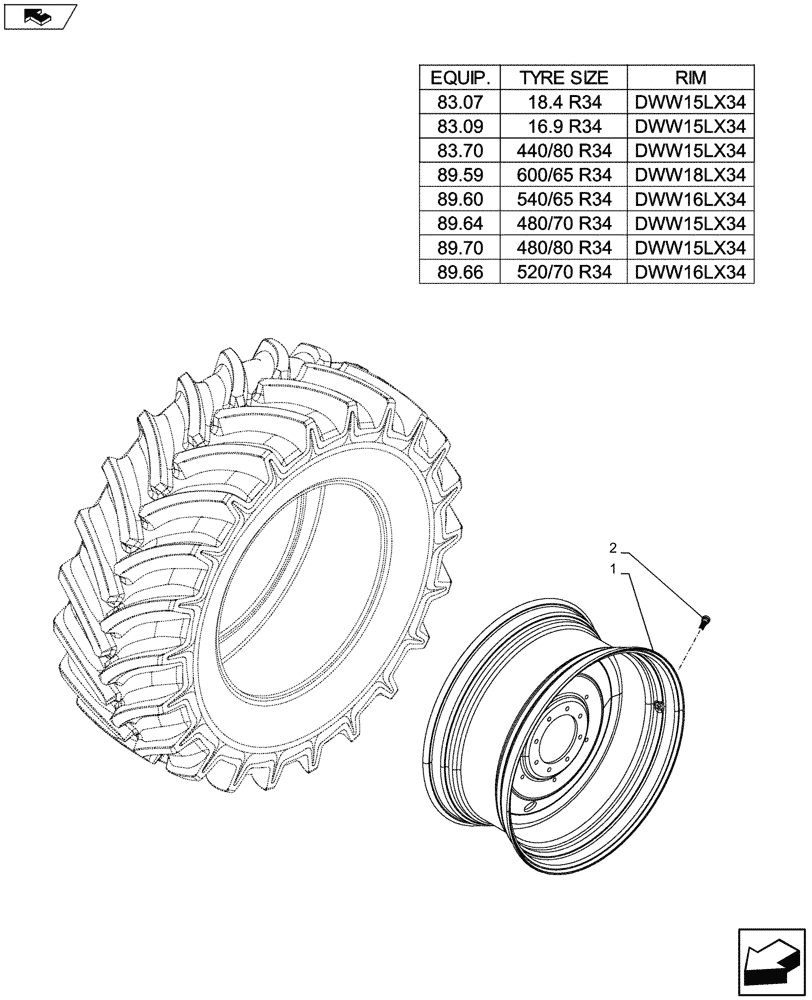

Схема запчастей Case IH FARMALL 105U - (44.520.AB[06A]) - WHEEL - REAR - BEGIN S/N ZCJR23173 (44) - WHEELS
2
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84562072

WHEEL,DWW15LX34, 8 Bolts, CASE Silver

DWW15L x 34

1шт.

With Equipment 83.07, 83.09, 89.64, 83.70, 89.70

1шт.

1

84562073

WHEEL,DWW16LX34, 8 Bolts, CASE Silver

DWW16L x 34

1шт.

With Equipment 89.60, 89.66

1шт.

1

84562074

WHEEL

DWW18L x 34

1шт.

With Equipment 89.59

1шт.

2

87323751

PNEUMATIC VALVE

1шт.
